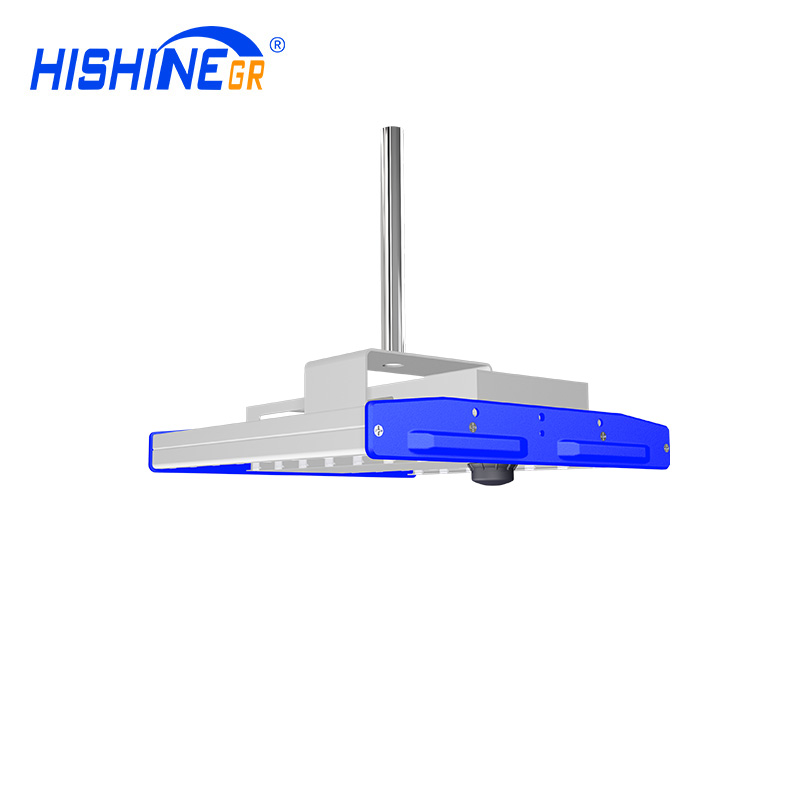

NEW 100W K5-B LED Linear High Bay Light
  • NEW 100W K5-B LED Linear High Bay Light
  • NEW 100W K5-B LED Linear High Bay Light
  • NEW 100W K5-B LED Linear High Bay Light
  • NEW 100W K5-B LED Linear High Bay Light
  • NEW 100W K5-B LED Linear High Bay Light

NEW 100W K5-B LED Linear High Bay Light


Product Parameters:

  • Part Number: HS-HB100W-K5-B
  • Wattage: 100W
  • Luminous Efficacy: 200LM/W
  • Lumen Output: 20000lm
  • Warranty: 7 years
  • Certification: UL,DLC,CB,CE,SAA
send inquiry



When planning or upgrade warehouse lighting, there are many factors to consider. The upgraded version of K5-B LED Linear high bay light can provide high lumens of over 200lm/w for industrial lighting, corridors, indoor parking lots, shopping malls and exhibition halls. The heat sink adopts aluminum stretching process, the lens adopts diamond cutting process, and provides a variety of light-emitting angles. Smart standard base, only need to replace the sensor module to change the smart mode. Support infrared remote control, Zigbee, Bluetooth Mesh, high altitude microwave sensor, infrared light sensor, Zigbee version supports heat map, supports light decay compensation. It improves cost performance and market competitiveness.



NEW 100W K5-B LED Linear High Bay Light dimension



100W K5-B LED linear high bay light dimension



NEW 100W K5-B LED Linear High Bay Light Technical Parameters



Part Number

HS-HB100W-K5-B

Wattage

100W

Lumen Output

20000lm

LED Quantity

384pcs

Size(MM)

L318*W299*H62

LED Chip

Lumileds 2835

Luminous Efficacy

200LM/W

CCT

3000K-6500K

CRI

≥80

Beam Angle

60°/90°/120°

IP Rating

IP54

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens





Why choose 100W K5-B LED linear high bay light?



High efficiency up to 200lm/w



K5-B LED linear high bay light is an upgraded version of K5. It uses high-brightness Lumileds 2835 lamp beads to make the whole lamp high efficiency up to 200lm/w. It is also the highest lumen linear lamp on the market.



Intelligent control option



Just replace the smart accessories and install Intelligent control freely: infrared remote control, Zigbee, Bluetooth Mesh, high-altitude microwave sensor, infrared light sensor, Zigbee version supports heat map, supports light decay compensation



200W K5 LED Linear High Bay Light Intelligent control option

Snap-in Type Lens PC Lens 30x120° / 60x120° / 90x120° , Milky Lens /Transparent Lens optional



Linear high bay has multiple different beam pattern options to suit different lighting requirements in different areas of the warehouse.Good color rendering, more vivid presentation of the real color.All kinds of light color is optional, can satisfy the demand of different environment.The depressed emotion caused by high or low temperature makes the visual sense more comfortable and improves the working efficiency of workers.



Snap-in Type Lens PC Lens 30x120° / 60x120° / 90x120° , Milky Lens /Transparent Lens optional



Special Process Surface Treatment



Sandblasting oxidation treatment on heat sink makes fixture body insulated with better abrasion performance and corrosion resistance



200W K5 LED Linear High Bay Light Special Process Surface Treatment



NEW 100W K5-B LED Linear High Bay Light Multiple Mounting Options



NEW 100W K5-B LED Linear High Bay Light Multiple  Mounting Options



NEW 100W K5-B LED Linear High Bay Light Applications



Widely used in Factory, Workshop, Warehouse, Logistics Center Exhibition Hall,Gymna-sium, Shipyards, Mining, Gas Station, Supermarket, etc.
