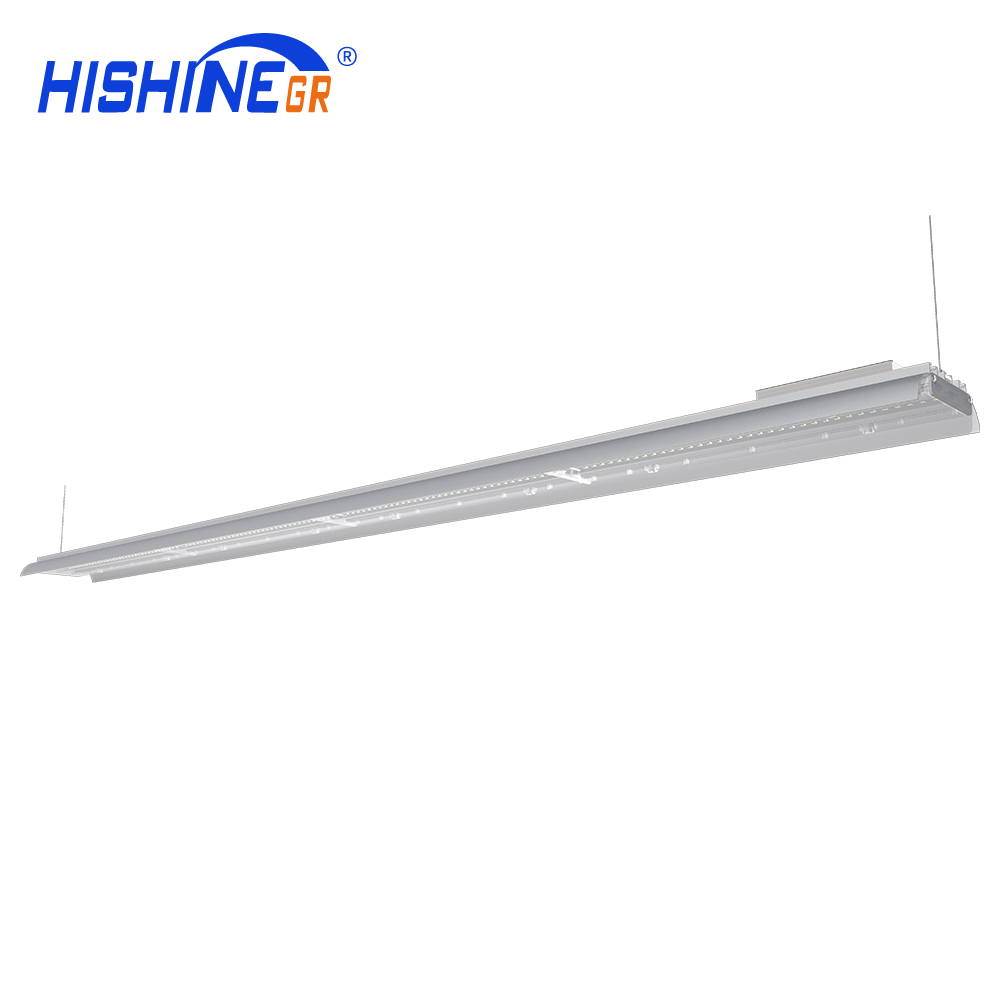

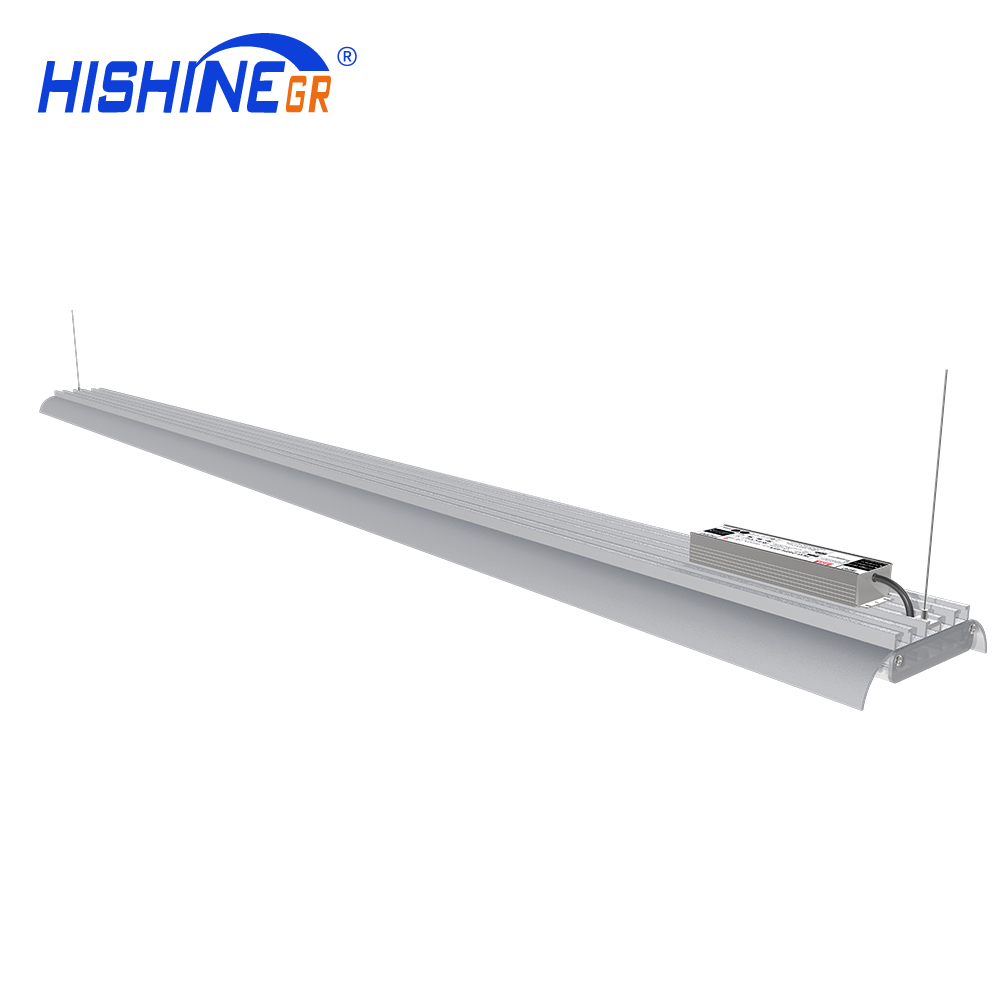

K3 LED Linear High Bay Light Product Parameters
|
Part Number
|
HS-HB30W-K3
|
HS-HB60W-K3
|
HS-HB90W-K3
|
HS-HB120W-K3
|
|
Wattage
|
30W
|
60W
|
90W
|
120W
|
|
Lumen Output
|
4560lm
|
9120lm
|
13680lm
|
18240lm
|
|
LED Quantity
|
49pcs
|
98pcs
|
147pcs
|
196pcs
|
|
Size(MM)
|
L298*W100*H26.5
|
L590*W100*H26.5
|
L885*W100*H26.5
|
L1180*W100*H26.5
|
|
LED Chip
|
Lumileds /Cree
|
|||
|
Luminous Efficacy
|
152LM/W
|
|||
|
CCT
|
3000K-6500K
|
|||
|
CRI
|
>80
|
|||
|
Beam Angle
|
30°/60°/90°Asymmetric 25°/Double 30°;
|
|||
|
IP Rating
|
IP44
|
|||
|
Working Temperature
|
-30℃ to +55℃
|
|||
|
Input Voltage
|
AC100-277V/347V/480V, 50/60Hz, ＞0.92
|
|||
|
Warranty
|
7 years
|
|||
|
Lifespan
|
＞50,000hrs
|
|||
|
Material
|
Die-casting Aluminum housing+PC lens
|
|||
Why Choose K3 Linear High Bay Ligh
 |
 |
|
High Efficient Heat Dissipation
|
Frosted Lens Low UGR
|
 |
 |
|
Easy Installation
|
Ruggedized Housing
|
Photometrics of K5 High Bay Light
 |
 |
 |
|
Single 25°
|
Double 30°
|
30°
|
 |
 |
|
|
60°
|
90°
|
Packing Info
| Model No. | N.G(KG) | G.W(KG) | Pcs/Carton | Product Dimension(MM) | Carton Size(MM) |
| HS-HB30W-K3 | 1.2 | 1.7 | 1 | 298*100*26.5 | 355*150*100 |
| HS-HB60W-K3 | 1.7 | 2.3 | 1 | 593*100*26.5 | 650*150*100 |
| HS-HB90W-K3 | 2.6 | 3.2 | 1 | 888*100*26.5 | 945*150*100 |
| HS-HB120W-K3 | 3 | 3.65 | 1 | 1183*100*26.5 | 1240*150*100 |
Mounting Methods of K3 High Bay Light
K3 Linear High Bay Light Applications
