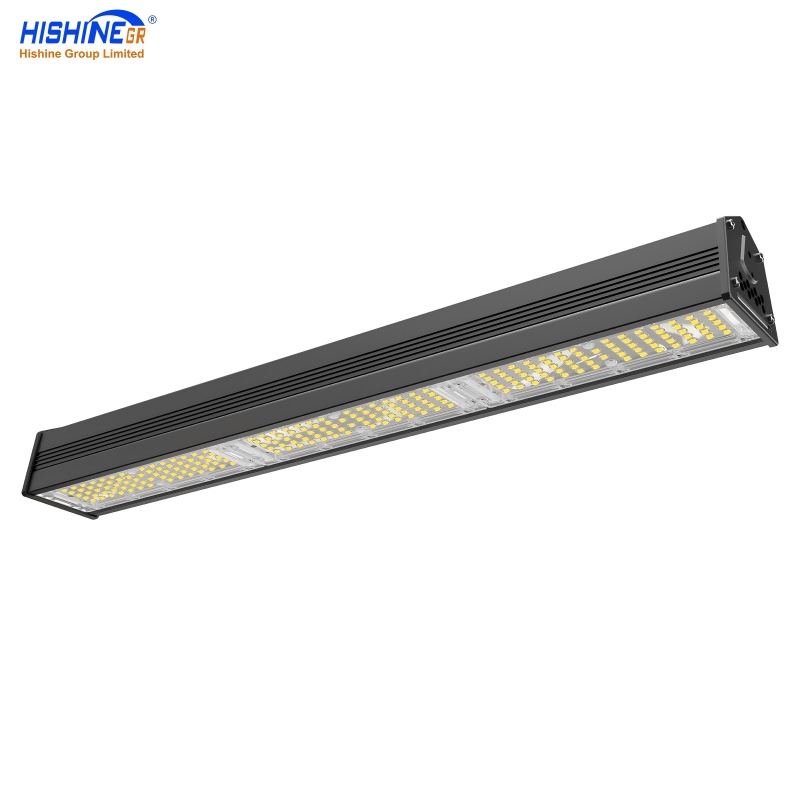

K11 Linear Light A Wise Choice For Your Project

Product Parameters:

Product Name: Linear High Bay Lights
Wattage: 50W/100W/150W/200W/250W
Luminous Efficacy: 150LM/W
Lumen Output: 7500lm, 15000lm, 22500lm, 30000lm, 37500lm
Warranty: 5 years
IP Rating: IP65

send inquiry

Detail

Why Choose K11 Linear Industrial Lighting?
Lighting choices play a crucial role in defining the function and ambiance of a space, especially in environments where extensive coverage and clarity is required.K11 Linear Highbay Lights are becoming more and more popular due to their unique advantages over traditional lighting solutions and even other modern alternatives such as UFO highbay lights. The reasons are listed below:

Comparison with traditional lighting solutions
Traditional lighting systems, including incandescent and fluorescent lamps, have been the preferred choice for decades. However, they have inherent drawbacks, such as higher energy consumption, shorter lifespans, and the need for frequent maintenance. In addition, they typically provide uneven lighting, which can be a significant drawback in large commercial or industrial spaces.

1. Superior Energy Efficiency: A 50W K11 linear industrial light is as bright as a 200W incandescent light, consuming significantly less power, which means significant savings on your electric bill.
2. Longer life: LED lamps last up to 50,000 hours or more, reducing the need for frequent replacements.
3. ENHANCED LIGHT QUALITY: The K11 linear industrial light has a relatively wide range of luminous angles, 50°/80°/30*100°/40*150°. Provides even light distribution and covers large areas more effectively.

K11 Linear High Bay Light Parameters

Part Number	HS-HB50W-K11	HS-HB100W-K11	HS-HB150W-K11	HS-HB200W-K11	HS-HB250W-K11
Power	50W	100W	150W	200W	250W
Lumen Efficiency	170LM/W
LED Chip	Lumileds 3030
LED Qty	72Pcs	144Pcs	216Pcs	288Pcs	360Pcs
Lumen Output	8 500lm	17000lm	25500lm	34000lm	42500lm
Beam Angle	50°/80°/30100°/40150°
CCT/CRI	3000K-6500K/≥70
Working Temperature	-20°to+55°
Custom Options	0/1-10V, Dali dimming, Microwave sensor, PiR sensor, zigbee control, Emergency battery backup
IP Rating	IP65
IK Rating	IK10
Warranty	5 Years
Lifespan	>50,000hours

Why Choose Hishine K11 High Bay Light?

IP65 Housing	CCT Adjustable - 3000K-6500K

*Multiple Beam Angles - 50°/80°/30100°/40150°*	High light effect - 150LM/W

Intelligent Control Options:

Just replace the smart accessories and install intelligent control freely: infrared remote control, Zigbee Bluetooth Mesh, high-altitude microwave sensor, infrared light sensor, Zigbee version supports heatmap, supports light decay compensation

Installation Method:

Bracket Mount	Ceiling Mount	Hanging Mount

Product Parameters:

Part Number	Dimensions(MM)	N.G(KG)	G.W(KG)	Package Size(MM)
50W	259101.693.5	0.8	2.4	304264.6167; 2Pcs/ctn
100W	511101.693.5	1.4	3.6	556264.6167; 2Pcs/ctn
150W	763101.693.5	2.2	6.2	808264.6167; 2Pcs/ctn
200W	1015101.693.5	2.9	7.6	1060264.6167; 2Pcs/ctn
250W	1267101.693.5	3.6	9	1312264.6167; 2Pcs/ctn

Light Distribution:

50°	80°	*30100°**	*40150°**

Applications:


Indoor Sports Hall Lighting	Supermarket LED Lighting	Warehouse LED Lighting	Workshop LED Lighting

FAQ

1.MOQ of bifacial K11 LED High Bay Light is？

1pcs for a sample is welcome.

2.Are you a manufacturing company?

Yes, we have 40000㎡ own factories & 200+ staff, 20000+pcs/month supply.

3.What about the lead time?

Samples: 3-5 working days after receiving payment. 10-25 working days for order production.

4.What about Payment?

Bank Transfer (TT), Paypal, Western Union, Trade assurance; 30% of the amount should be paid before producing, and 70% of the payment should be paid before shipping.

5.How to deal with the faulty?

Firstly, Our LED lighting is produced with a strict quality control system and the defective rate will be less than 0.1%. Secondly, we will repair or replace defective fixtures during the warranty period.

6.Can you do ODM and OEM projects of K11 LED High Bay Light?

Sure! In addition to K11 LED High Bay Light, Any high-power led lamps are all welcome.
