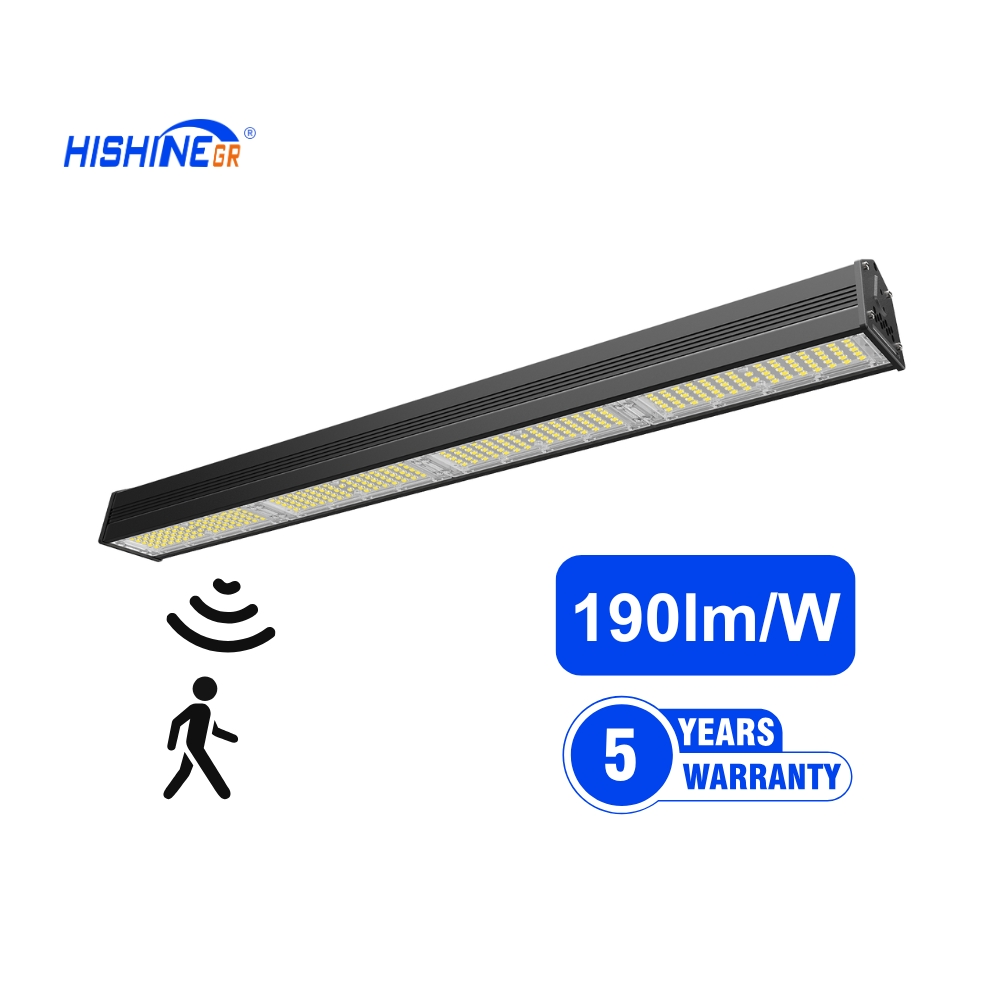

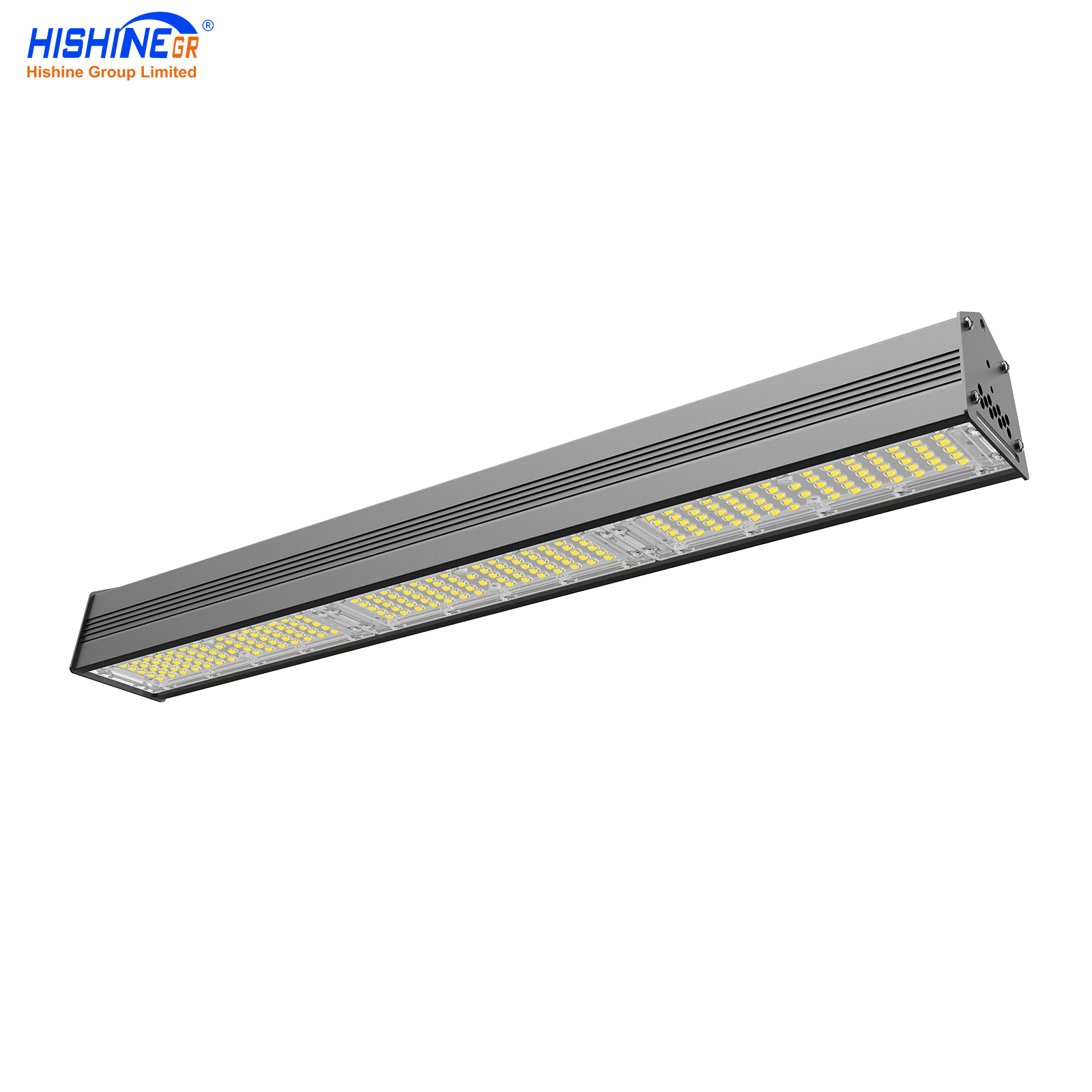

K11 Linear Light The Best Low Bay Light For You

Product Parameters:

Product Name: Linear High Bay Lights
Wattage: 50W/100W/150W/200W/250W
Luminous Efficacy: 150LM/W
Lumen Output: 7500lm, 15000lm, 22500lm, 30000lm, 37500lm
Warranty: 5 years
IP Rating: IP65

send inquiry

Detail

What is a low bay fixture?
Low bay fixtures are lighting solutions designed specifically for areas where ceiling heights are typically 12 to 20 feet. They are characterized by Luminous efficiency, these fixtures are carefully designed to evenly distribute light and reduce glare, ensuring that every corner of the space is well-lit without the harshness associated with other lighting types.

Compared to high bay fixtures, low bay fixtures are characterized by a wider beam angle, which provides a dispersed light that covers a larger horizontal and vertical space relative to the mounting height. This makes them particularly suitable for spaces close to the ground where optimum visibility and light quality are required.

K11 is Hishine New type of linear light, its wattage range is from 50W-200W. The beam angles of K11 are 50°/80°/30*100°/40*150°, those wider beam angles can provide dispersed light and cover bigger space. K11 is a waterproof linear light, with an IP rating is IP65, and can be used in some wet environments such as some food processing plants and underground garages.

K11 Linear Light Parameters

Part Number	HS-HB50W-K11	HS-HB100W-K11	HS-HB150W-K11	HS-HB200W-K11	HS-HB250W-K11
Power	50W	100W	150W	200W	250W
Lumen Efficiency	170LM/W
LED Chip	Lumileds 3030
LED Qty	72Pcs	144Pcs	216Pcs	288Pcs	360Pcs
Lumen Output	8500lm	17000lm	25500lm	34000lm	42500lm
Beam Angle	50°/80°/30100°/40150°
CCT/CRI	3000K-6500K/≥70
Working Temperature	-20°to+55°
Custom Options	0/1-10V, Dali dimming, Microwave sensor, PiR sensor, zigbee control, Emergency battery backup
IP Rating	IP65
IK Rating	IK10
Warranty	5 Years
Lifespan	>50,000hours

Why Choose Hishine K11 Linear Light?

IP65 Housing	CCT Adjustable - 3000K-6500K

*Multiple Beam Angles - 50°/80°/30100°/40150°*	High light effect - 150LM/W

Intelligent Control Options:

Just replace the smart accessories and install intelligent control freely: infrared remote control, Zigbee Bluetooth Mesh, high-altitude microwave sensor, infrared light sensor, Zigbee version supports heatmap, supports light decay compensation

Installation Method:

Bracket Mount	Ceiling Mount	Hanging Mount

Product Parameters:

Part Number	Dimensions(MM)	N.G(KG)	G.W(KG)	Package Size(MM)
50W	259101.693.5	0.8	2.4	304264.6167; 2Pcs/ctn
100W	511101.693.5	1.4	3.6	556264.6167; 2Pcs/ctn
150W	763101.693.5	2.2	6.2	808264.6167; 2Pcs/ctn
200W	1015101.693.5	2.9	7.6	1060264.6167; 2Pcs/ctn
250W	1267101.693.5	3.6	9	1312264.6167; 2Pcs/ctn

Light Distribution:

50°	80°	30*100°	40*150°

Applications:


Indoor Sports Hall Lighting	Supermarket LED Lighting	Warehouse LED Lighting	Workshop LED Lighting

FAQ

1.MOQ of bifacial K11 LED High Bay Light is？

1pcs for a sample is welcome.

2.Are you a manufacturing company?

Yes, we have 40000㎡ own factories & 200+ staff, 20000+pcs/month supply.

3.What about the lead time?

Samples: 3-5 working days after receiving payment. 10-25 working days for order production.

4.What about Payment?

Bank Transfer (TT), Paypal, Western Union, Trade assurance; 30% of the amount should be paid before producing, and 70% of the payment should be paid before shipping.

5.How to deal with the faulty?

Firstly, Our LED lighting is produced with a strict quality control system and the defective rate will be less than 0.1%. Secondly, we will repair or replace defective fixtures during the warranty period.

6.Can you do ODM and OEM projects of K11 LED High Bay Light?

Sure! In addition to K11 LED High Bay Light, Any high-power led lamps are all welcome.
