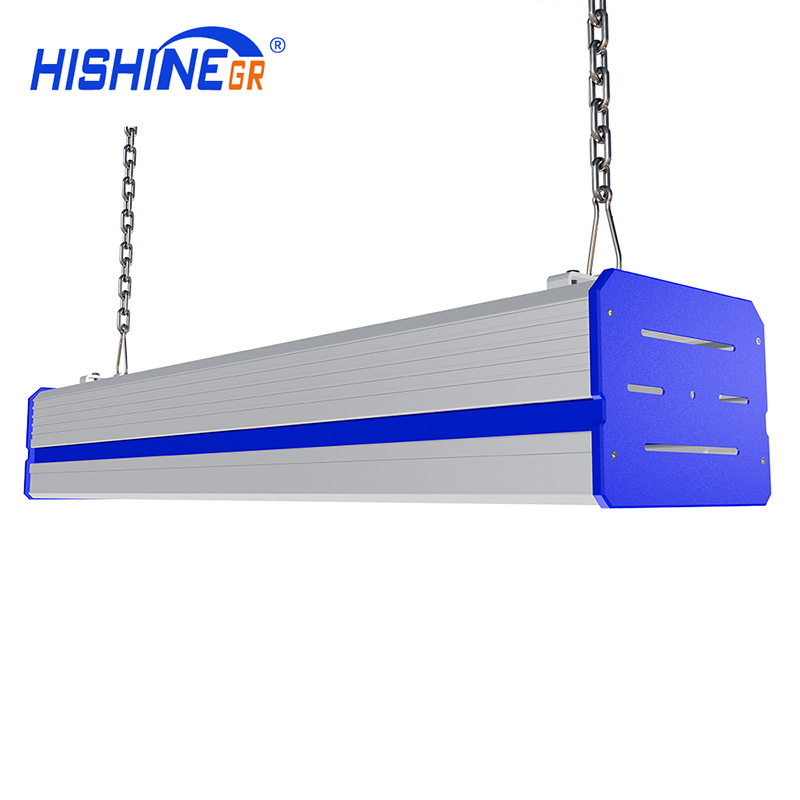

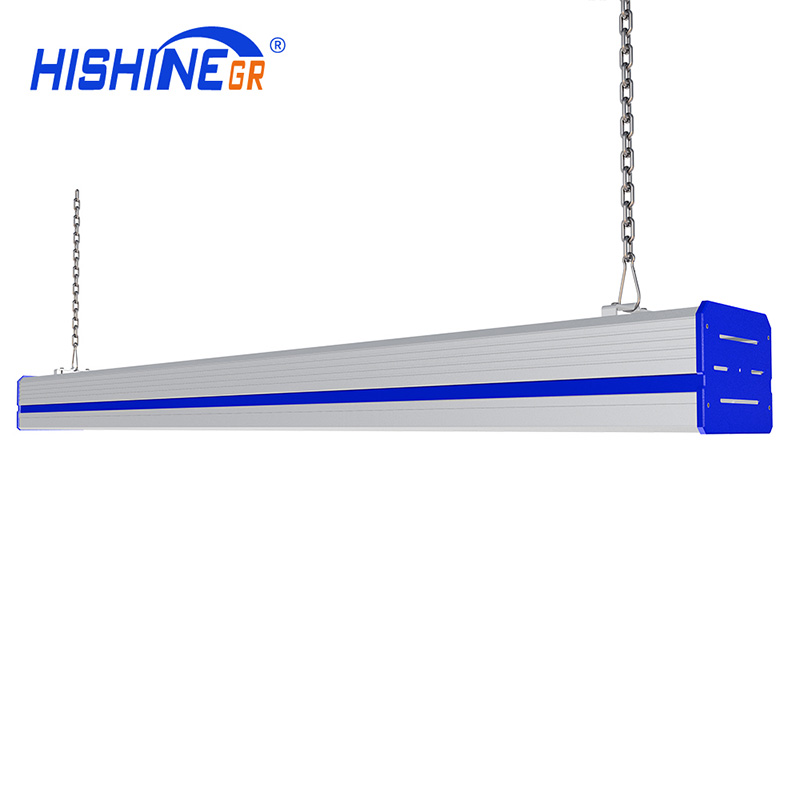

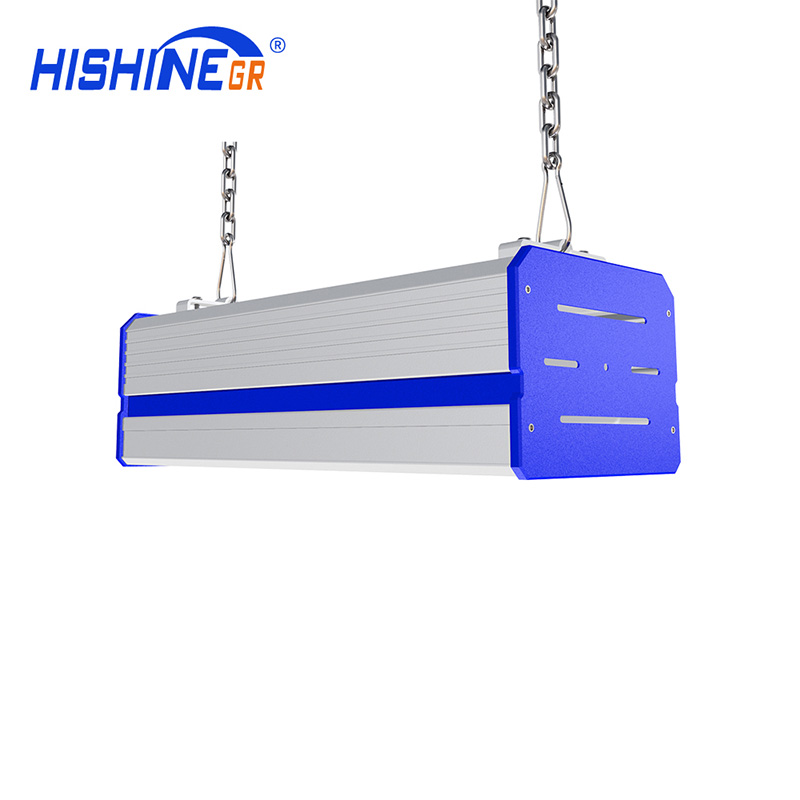

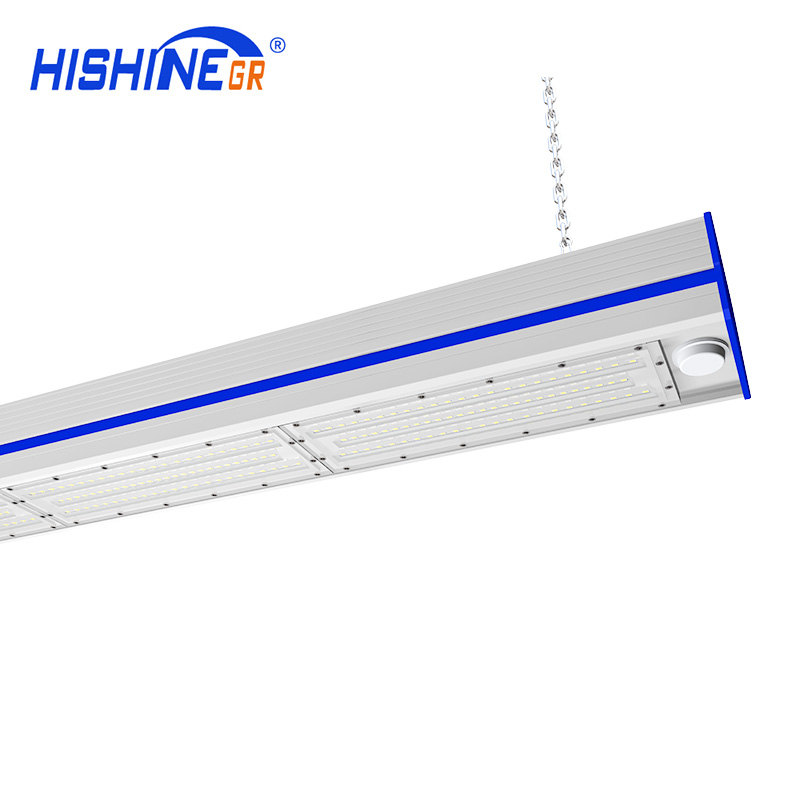

HS-HB-K1 linear LED luminaires deliver a high lumen output to replace legacy HID and 2-, 4- or 6-lamp T5HO fluorescent fixtures in both low bay and high bay applications. The HS-HB-K1 family of linear LED high bay fixtures are available in six different wattages including 50W,100W, 150W, 200W, and 250W. They're designed to replace 500W HID equivalents while achieving up to 75% energy savings. Rugged construction and sophisticated LED technology add unparalleled energy efficiency and reliability for years of maintenance-free operation.
The HS-HB-K1 linear high bay delivers industry-leading performance with an extremely attractive payback advantage. The full-body assembly features a value-optimized chassis design and is made of extruded aluminum that provides durable protection and optimal heat dissipation for LEDs, optics, and electrical components. The high flux density SMD LEDs produce 152 lm/W system efficacy (lensed). Combined with a perfectly matched driving circuit with full-featured protection as well as superior thermal management, HS-HB-K1 LED modules offer extraordinary lumen maintenance greater than 90 percent at 50,000 hours and a projected life of over 200,000 hours.

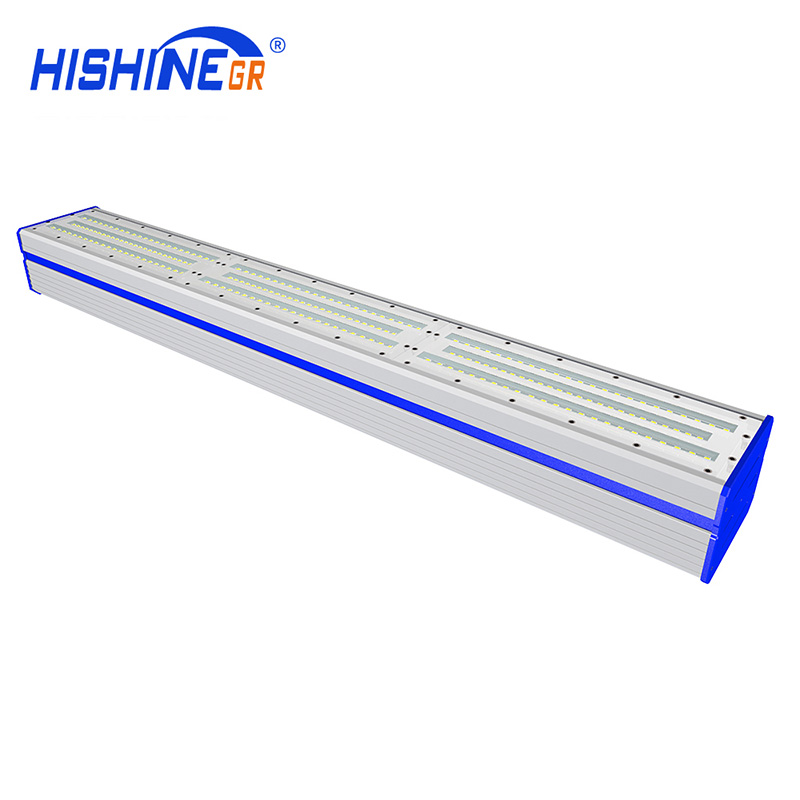

K1 LED Linear High Bay Light Product decomposition
1. Separate heat sink for driver and LED chip
2. Three-dimensional diamond light guide technology
3. Beam angle 60°; /90°; /120°; with transparent / frosted PC lens available
4. Endless Connection
5. Colorful housing can be customized
K1 LED Linear High Bay Light Product specifications
K1 LED Linear High Bay Light Product Parameters
|
Part Number
|
HS-HB50W-K1
|
HS-HB100W-K1
|
HS-HB150W-K1
|
HS-HB200W-K1
|
HS-HB250W-K1
|
|
Wattage
|
50W
|
100W
|
150W
|
200W
|
250W
|
|
Lumen Output
|
7600lm
|
15200lm
|
22800lm
|
30400lm
|
38000lm
|
|
LED Quantity
|
77pcs
|
154pcs
|
231pcs
|
308pcs
|
308pcs
|
|
Size(MM)
|
L305*W122*H95
|
L600*W122*H95
|
L895*W122*H95
|
L1190*W122*H95
|
L1190*W122*H95
|
|
LED Chip
|
Lumileds/Cree
|
|
Luminous Efficacy
|
152LM/W
|
|
CCT
|
3000K-6500K
|
|
CRI
|
＞80
|
|
Beam Angle
|
60°/90°/120°
|
|
IP Rating
|
IP65
|
|
Working Temperature
|
-30℃ to +55℃
|
|
Input Voltage
|
AC100-277V/347V/480V, 50/60Hz, ＞0.92
|
|
Warranty
|
7 years
|
|
Lifespan
|
＞50,000hrs
|
|
Material
|
Die-casting Aluminum housing+PC lens
|
K1 LED Linear High Bay Light Intelligent Control
K1 LED Linear High Bay Lighting includes 0-10V Dimming,Timer Control, Zigbee Control , Occupancy sensor,DALI Control,Emergency power supply
K1 LED Linear High Bay Light Milky Lens And Transparent Lens
K1 LED Linear High Bay Lighting Milky Lens And Transparent Lens.Multiple option.including 60°/90°/120°
K1 LED Linear High Bay Light IP Rating IP65
Silicon rubber ring sealing process, IP grade reach IP65,completely prevent dust invasion and heavy rain.
K1 LED Linear High Bay Light Multiple Mounting Options
K1 Waterproof LED High Bay Light Applications
Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.
