100W K1 Waterproof Linear High Bay Light
  • 100W K1 Waterproof Linear High Bay Light
  • 100W K1 Waterproof Linear High Bay Light
  • 100W K1 Waterproof Linear High Bay Light
  • 100W K1 Waterproof Linear High Bay Light
  • 100W K1 Waterproof Linear High Bay Light
  • 100W K1 Waterproof Linear High Bay Light

100W K1 Waterproof Linear High Bay Light


Product Parameters:

  • Wattage: 100W
  • Luminous Efficacy: 152LM/W
  • Lumen Output: 15200lm
  • Warranty: 7 years
  • IP Rating: IP65
  • Certification: UL, DLC, CB, CE, SAA, SASO, IP65
send inquiry

Parameters


Part Number
HS-HB100W-K1
Wattage
100W
Lumen Output
15200lm
LED Qty
154Pcs
Size(mm)
L600*W122*H95
LED Chip
Lumileds/Cree
Luminous Efficacy
152LM/W
CCT
3000K-6500K
CRI
>80
Beam Angle
60°/90°/120°
IP Rating
IP65
Working Temperature
-30°~+50°
Input Voltage
AC100-277V/347V/480V, 50/60Hz, >0.92
Warranty
7 years
Lifespan
>50,000hrs
Material
Die-casting Aluminum housing+PC lens
HS-HB-K1 linear LED luminaires deliver a high lumen output to replace legacy HID and 2-, 4- or 6-lamp T5HO fluorescent fixtures in both low bay and high bay applications. The HS-HB-K1 family of linear LED high bay fixtures are available in six different wattages including 100W. They're designed to replace 500W HID equivalents while achieving up to 75% energy savings. Rugged construction and sophisticated LED technology add unparalleled energy efficiency and reliability for years of maintenance-free operation.
The HS-HB-K1 linear high bay delivers industry-leading performance with an extremely attractive payback advantage. The full-body assembly features a value-optimized chassis design and is made of extruded aluminum that provides durable protection and optimal heat dissipation for LEDs, optics, and electrical components. The high flux density SMD LEDs produce 152 lm/W system efficacy (lensed). Combined with a perfectly matched driving circuit with full-featured protection as well as superior thermal management, HS-HB-K1 LED modules offer extraordinary lumen maintenance greater than 90 percent at 50,000 hours and a projected life of over 200,000 hours.

Why Choose Hishine K1 Linear High Bay Light?

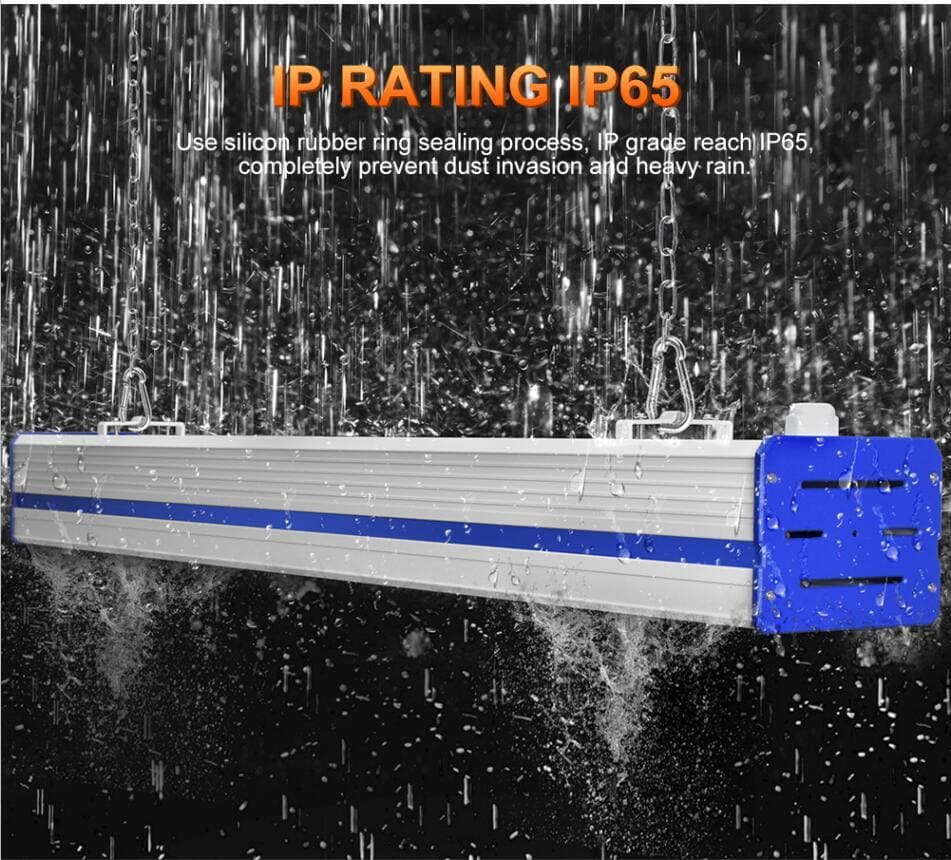

IP Rating IP65
Connection Buckle
K1 LED Linear High Bya Light IP Rating IP65
Apply to Different Smart Sensor
Excellent Heat Dissipation

K1 LED Linear High Bay Light Multiple Mounting Options


Hanging Mount
Pipe Mount
Surface Mount
Bracket mount

Packing Info

Model No.
N.G(KG)
G.W (KG)
Pcs/carton
Carton Size(CM)
HS-HB100W-K1
4
4.1
1
70*22*20

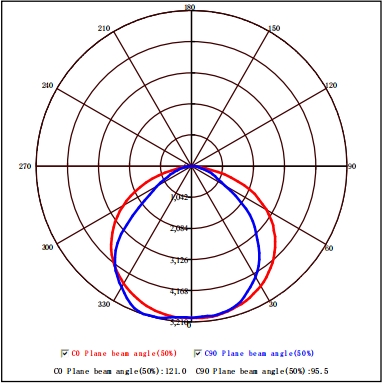

Light Distribution Curve


60°
90°
120°

K1 Waterproof LED High Bay Light Applications

Widely used in workshops, factories, warehouses, stadiums, exhibition halls, supermarkets, courts, etc.
