Hi-Slim LED Area Light 150W/200W
  • Hi-Slim LED Area Light 150W/200W
  • Hi-Slim LED Area Light 150W/200W
  • Hi-Slim LED Area Light 150W/200W
  • Hi-Slim LED Area Light 150W/200W
  • Hi-Slim LED Area Light 150W/200W

Hi-Slim LED Area Light 150W/200W


Product Parameters:

  • Wattage: 150W 200W
  • Luminous Efficacy: 155LM/W
  • Lumen Output: 23250lm 31000lm
  • Warranty: 7 years
  • Certification: UL,DLC,CB,CE,SAA,SASO,IP66
See Price

Hi-Slim LED Area Light 150W/200W

HISHINE newly developed LED Area Light has an industry-leading 155LM/W for high efficiency and reliability. With IP67 waterproofing and IK10 protection, LED Street Light can work in harsh environments and deliver outstanding performance. Hi-Slim LED Area Light uses  high-quality Lumileds 5050 light source and has a professional power supply design that is extremely durable and safe. The configured Photocell can minimize the cost of light for energy saving and environmental protection. Easy to maintain, you can enjoy the best lighting and safety.

Hi-Slim LED Area Light Product Specifications

Hi-Slim LED Area Light Product  Specifications

Key Features Of Hi-Slim LED Area Light

1. Ultra slim heat sink design makes the lamp lighter and better in heat dissipation

2. High lumen SMD3030/SMD5050 chip

3. Waterproof IP67,high thermal conductivity housing

4. Beam angle Type II,III,IV  glass lens with transmittance 92%

5.Maximised savings on energy and maintenance costs

6.Contractor-friendly installation and maintenance

7.Minimal total cost of ownership

8.Flexible and intelligent lighting control options

9.Low windage and lightweight

Hi-Slim LED Area Light Product Parameters

(5050 Chip Seres)

Part Number

HS-SL150W-B

HS-SL200W-B

Wattage

150W

200W

Lumen Output

23250lm

31000lm

LED Quantity

120pcs

120pcs

LED Chip

 Lumileds 5050

Luminous Efficacy

155LM/W

Beam Angle

TypeII,TypeIII

(3030 Chip Seres)

Part Number

HS-SL150W-B

HS-SL200W-B

Wattage

150W

200W

Lumen Output

19500lm

26000lm

LED Quantity

231pcs

308pcs

Size(MM)

L570*W379*H111

LED Chip

  Lumileds 3030

Luminous Efficacy

130LM/W

CCT

3000K-6500K

CRI

≥80

Beam Angle

TypeII,TypeIII,TypeIV

IP Rating

IP67

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens+Tempered glass cover

Hi-Slim LED Area Light Highlights

Hi-Slim LED Area Light Highlights

Hi-Slim LED Area Light Lens And Beam Angle

Hi-Slim LED Area Light Lens  And Beam Angle

Hi-Slim LED Area Light Smart city lighting

Hi-Slim Smart lighting includes 0-10V Dimming,Timer Control, Photocell, Occupancy sensor,DALI Control,Solar Compatible

Hi-Slim LED Area Light Smart city lighting

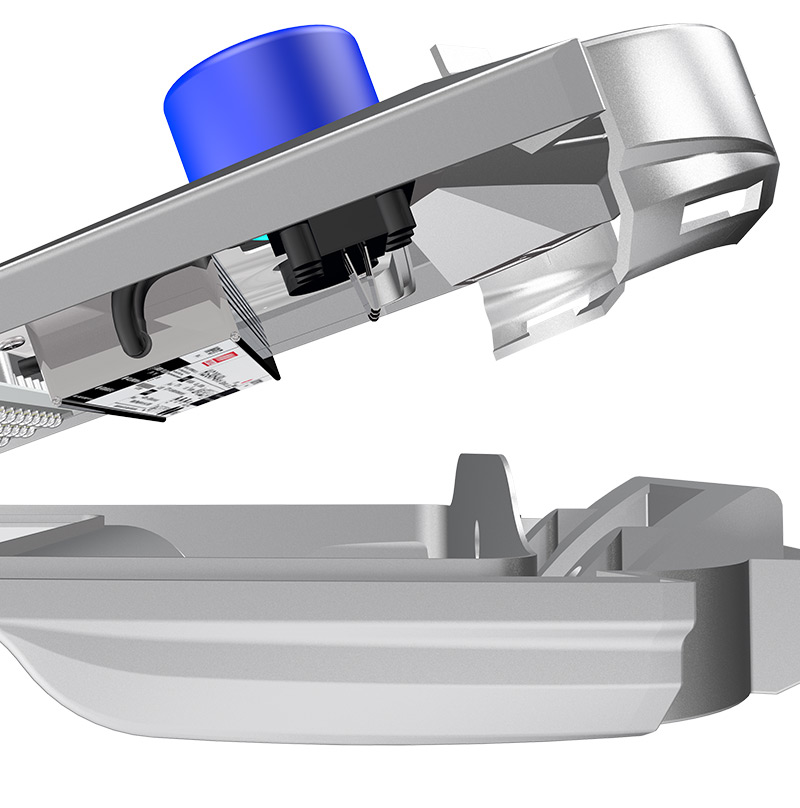

Hi-Slim LED Area Light Tool-free LED Driver Replacement

Hi-Slim LED Area Light Tool-free LED  Driver Replacement

Hi-Slim LED Area Light With Buckle

Hi-Slim LED Area Light With Buckle

Hi-Slim LED Area Light Power-off Protection

Hi-Slim LED Area Light Power-off  Protection

Hi-Slim LED Area Light Vent

There are two vents with a balanced atmosphere Pressure and moisture prevention

Hi-Slim LED Area Light Vent

Hi-Slim LED Area Light Multiple Mounting Options

Hi-Slim LED Area Light Multiple  Mounting Options

Hi-Slim LED Area Light Applications

Widely use in high way, parking lot area, roadway, pathway, square,stadium,residential area,yard,industrial area and etc.

Hi-Slim LED Area Light Applications 1

Hi-Slim LED Area Light Applications
