- Modular design
- 320W/480W/720W/960W/1300W, 160 LM/W
- UL / DLC/CB/SASO/RoHs/CE/SAA/IK10 approved
- 20°, 30°, 45°, & 60x100° beam angle
- Drag coefficient: 12 windage
- 1-10v dimming, intelligent dimming (light control, optional wireless control)
- Intelligent control system
- Wind Test Certified & 20KV Surge Protection.
- Power Factor .95, IP Rating: IP66
Part Number |
HS-HM320W-A |
HS-HM480W-A |
HS-HM720W-A |
HS-HM960W-A |
HS-HM1300W-A |
Wattage |
320W |
480W |
720W
|
960W |
1300W
|
Lumen Output |
51200lm |
76800lm |
115200lm
|
153600lm |
208000lm
|
LED Quantity |
180pcs |
240pcs |
360pcs
|
540pcs |
720pcs
|
Size(MM) |
L690*W230*H75 |
L460*W460*H75 |
L690*W460*H75 |
L690*W690*H75 |
L920*W690*H75 |
LED Chip |
Lumileds 5050 |
||||
Luminous Efficacy |
160LM/W |
||||
CCT |
3000K-6500K |
||||
CRI |
≥80 |
||||

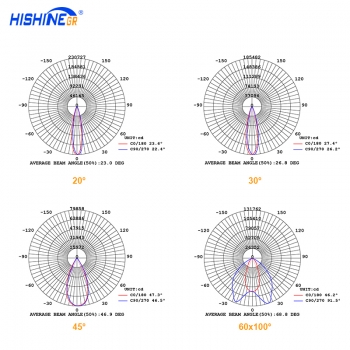

Beam Angle |
20°/30°/45°/ |
||||
IP Rating |
IP67 |
||||
Working Temperature |
-30℃ to +55℃ |
||||

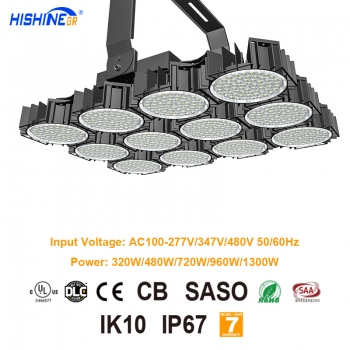

Input Voltage |
AC100-277V/347V/480V, 50/60Hz, >0.92 |
||||
Warranty |
7 years |
||||
Lifespan |
>50,000hrs |
||||
Material |
Die-casting Aluminum housing+PC lens |
MEET MORE APPLICATION REQUIREMENTS

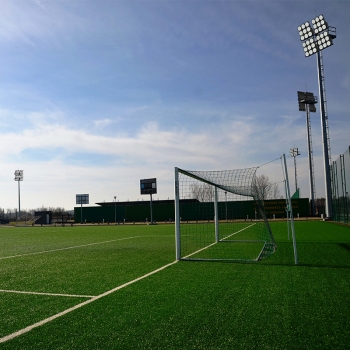

-Football field, stadium, football field, baseball field, golf course, basketball court, swimming pool, hockey field, volleyball court and racing field
-Entertainment areas, parks and tennis courts
-Large parking lot and airport, seaport terminal

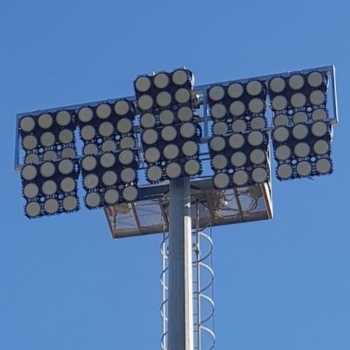

-High mast applications on highways and bridges
-Lighting for oil refineries, drilling platforms, derricks, prisons, military camps and manufacturing sites
