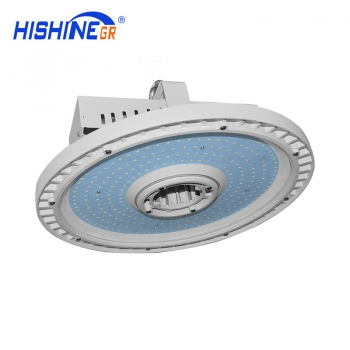

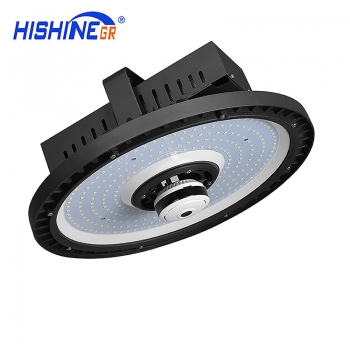

The UFO LED high bay fixture from H2 is designed to replace a 6-lamp T5HO fluorescent fixture. This 250 watt LED high bay produces 38000 lumens and 5000K cool white color temperature using universal voltage 120-277V. The fixture housing has a die-cast aluminum construction, and is also sealed with a polycarbonate lens. LED highbay fixtures are ideal lighting solutions for commercial applications like warehouses, gymnasiums, factories, convention centers and arenas.
H2 LED UFO High Bay Light Product decomposition
1. Aluminum Alloy, Super heat conductivity, better heat dissipation
2. Waterproof IP65,high thermal conductivity housing
3. Premium Material, light weight, reduce transportation cost.
4. Glass lens with transmittance up to 92%
H2 LED UFO High Bay Light Product Parameters
Part Number |
HS-HB150W-H2 |
HS-HB200W-H2 |
HS-HB250W-H2 |
Wattage |
150W |
200W |
250W
|
Lumen Output |
22800lm |
30400lm |
38000lm
|
LED Quantity |
210pcs |
280pcs |
280pcs
|
Size(MM) |
Φ380*H190 |
||
LED Chip |
Lumileds 2835 |
||
Luminous Efficacy |
152LM/W |
||
CCT |
3000K-6500K |
||
CRI |
≥80 |
||
Beam Angle |
120° |
||
IP Rating |
IP65 |
||
Working Temperature |
-30℃ to +55℃ |
||
Input Voltage |
AC100-277V/347V/480V, 50/60Hz, >0.92 |
||
Warranty |
7 years |
||
Lifespan |
>50,000hrs |
||
Material |
Die-casting Aluminum housing+tempered glass cover |
H2 LED UFO High Bay Light Intelligent Control
H2 LED UFO High Bay Lighting includes 0-10V Dimming,Timer Control, Zigbee Control , Occupancy sensor,DALI Control,Emergency power supply
H2 LED UFO High Bay Light Multifunction

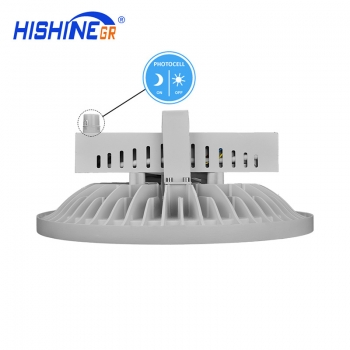

two cut-out on top of power supply box, one apply for motion sensor ,another apply for Pipe
H2 LED UFO High Bay Light IP Rating IP65
Silicon rubber ring sealing process, IP grade reach IP65,completely prevent dust invasion and heavy rain.

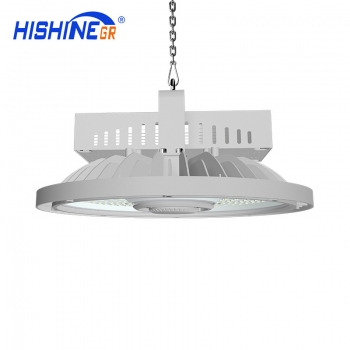

H2 LED UFO High Bay Light Multiple Mounting Options
H2 LED UFO High Bay Light Applications
Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.
