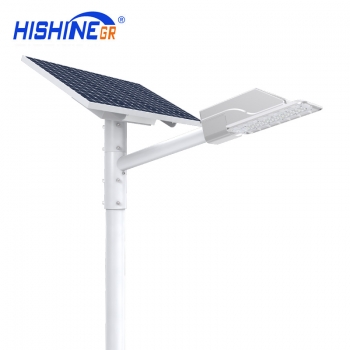

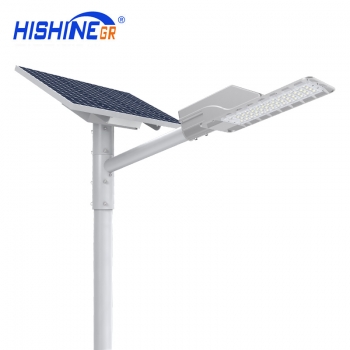

Hi-Small Led Solar Street Light Split outdoor solar lights fixtures combine architectural form and versatility to make it an excellent choice for outdoor solar lighting solutions.
Hi-Small outdoor solar lights adopt high-efficiency solar cells (around 17%), top performing long lifespan battery, and solid solar MPPT battery charge controller with built-in LED driver. Excellent LED chips to make the luminous efficacy up to 130 lm/w. High output LEDs and bespoke engineered optics provide an excellent lighting solution with improved uniformity
Part Number |
HS-STG30W |
HS-STG50W |
HS-STG70W |
HS-STG100W |
Wattage |
30W |
50W |
70W |
100W |
Lumen Output |
3900lm |
6500lm |
9100lm |
13000lm |
Solar Panel (Monocrystalline silicon) |
50W/18V |
70W/18V |
90W/18V |
120W/18V |
Solar Panel Size(MM) |
670*540*25 |
670*540*25 |
770*670*30 |
920*670*30 |
Battery |
275WH/12V |
385WH/12V |
550WH/12V |
800WH/12V |
LED Chip |
SMD 3030 |
|||
Luminous Efficacy |
130LM/W |
|||
CCT |
3000K-6500K |
|||
Mounting Height |
5-8M |
8-9M |
9-10M |
10-11M |
Install the distance |
20-32M |
32-36M |
36-40M |
40-45M |
Storage Temperature |
0℃~+45℃ |
|||
Operating Temperature |
-14℃~+70℃ |
|||
Discharge Time |
adjustable wet weather 3 days (24hours to 36 hours) |
|||
Controller |
24V MPPT controller (time + light control) |
|||
Beam Angle |
Type III, Type IV, Type V |
|||
Intelligent control |
Night sensor + PIR motion sensor+Remote Control andCamera Monitoring |
|||
IP Rating |
IP65 |
|||
Warranty |
5 years |
Split Solar outdoor area light provides solution for various areas and sites.
Type II: 5-7M installation height for 1 traffic lane or 8-12M for 2 traffic lanes
Type III:8-12M installation height for 3 traffic lanes
Type IV: Medium
Type V: Short, for parking lot squre shape
1. Beam angle Type II,III,IV,V lens with transmittance 92%
2. Night sensor + PIR motion sensor+Remote Control +Camera Monitoring
3. Top quality solar cells, smaller size but higher efficiency
4. Flexible Adjustable angle solar panel, high strength against wind
5. Big capacity and deep cycle lithium battery, more durable service life.
6. 4 types of working modes option
7. Hishine patented product, beautiful appearance in integrally molded design,Aluminum alloy case Camera Monitoring
Hi-Small comes complete with built-in motion detection detection system that automatically regular the light soure from full bright(100%)to the energy saving output(50%) to increase battery autonomy.
silicon rubber ring sealing process, IP grade reach IP65,completely prevent dust invasion and heavy rain.
Widely use in high way, parking lot area, roadway, pathway, square,stadium,residential area,yard,industrial area and etc.
