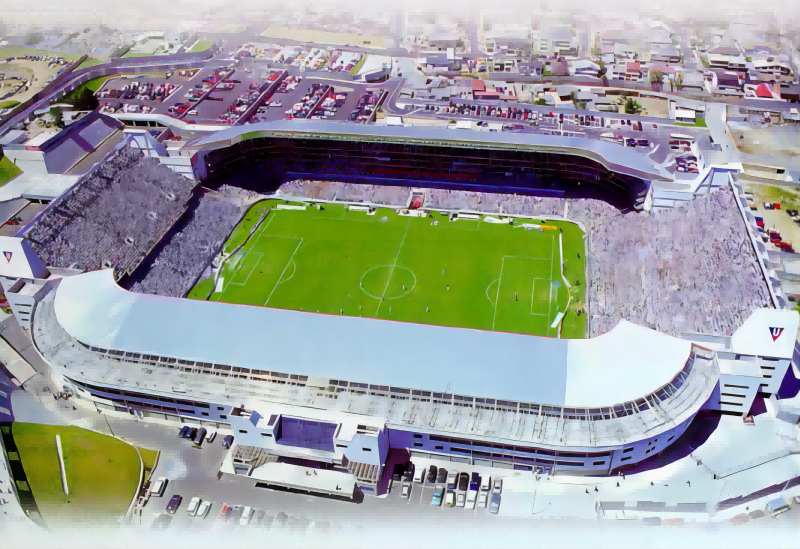

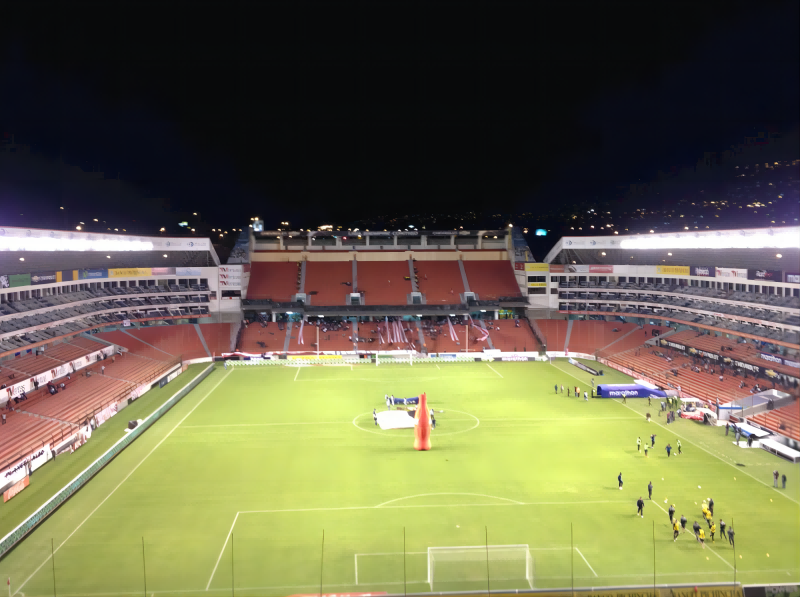

(Ecuador) Stadium LED Lighting Solution

Stadium lighting simulation involves creating a virtual model of a stadium and simulating how light interacts with the environment, players, and spectators. This process is essential for designing effective lighting that meets regulatory standards, enhances visibility for players and fans, and creates the desired atmosphere for events. Here are the key elements and steps involved in stadium lighting simulation:

Key Elements

1. **3D Model of the Stadium**:

Create a detailed 3D stadium model, including seating arrangements, field dimensions, and architectural features.

2. **Lighting Design**:

Determine the type, number, and placement of lights (LEDs, floodlights, etc.) based on the activities that will take place (e.g., football, concerts).

3. **Lighting Parameters**:

Define parameters such as intensity (measured in lux), color temperature (measured in Kelvin), and beam angle of the lights.

4. **Simulation Software**:

Use specialized software (like DIALux, Relux, or Autodesk Revit) that can model lighting conditions, calculate illuminance levels, and visualize different scenarios.

5. **Environmental Considerations**:

Consider external factors like weather, time of day, and surrounding structures that may affect lighting.

6. **Regulatory Compliance**:

Ensure the lighting design complies with relevant standards and regulations (e.g., FIFA, NCAA, or local guidelines).

Steps in the Simulation Process

1. **Data Collection**:

Gather data about the stadium's dimensions, the intended use of the space, and any specific requirements (e.g., broadcast standards).

2. **Model Creation**:

Build a 3D model of the stadium using CAD software. Include all relevant features that may affect lighting.

3. **Lighting Layout**:

Design a lighting layout. Place light sources in the model, considering angles and heights to minimize shadows and provide uniform coverage.

4. **Simulation Setup**:

Input lighting parameters into the simulation software. This includes the type of lights, their wattage, and intended brightness.

5. **Run Simulations**:

Execute the simulations under various conditions (different times of day, weather scenarios) to evaluate how the lighting performs.

6. **Analyze Results**:

Review the simulation results, focusing on illuminance levels, uniformity, and any potential issues like glare or dark spots.

7. **Optimization**:

Modify the lighting design based on the analysis to optimize visibility and overall effectiveness.

8. **Visualization**:

Create visualizations or renderings to present the lighting design to stakeholders, showing how the stadium will look under different lighting conditions.

9. **Final Adjustments**:

Make any final adjustments based on feedback and re-run simulations as necessary.

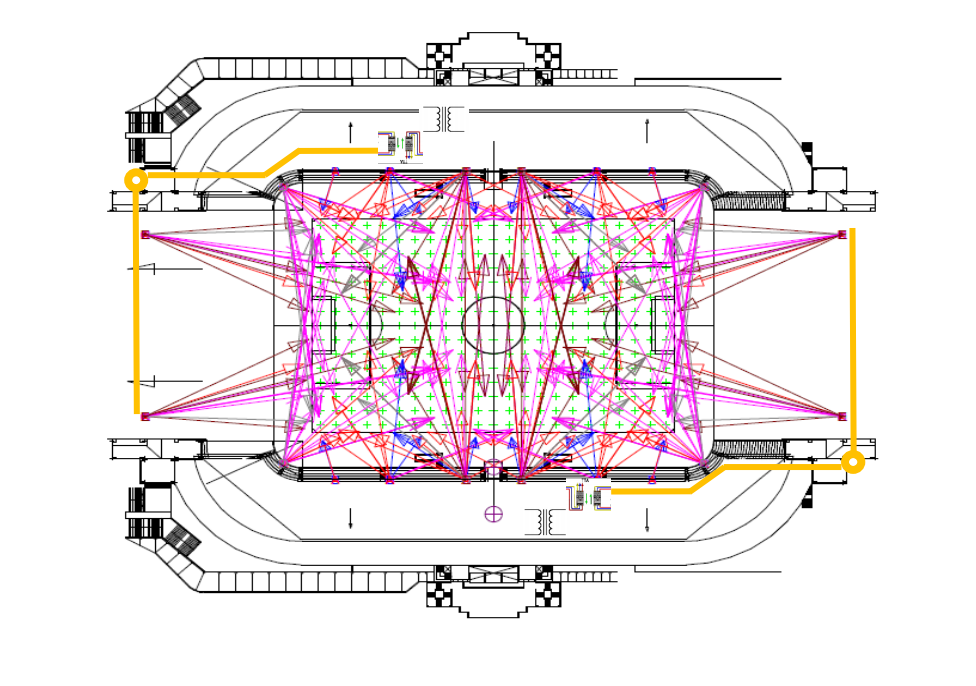

Lights Layout & 3D Display

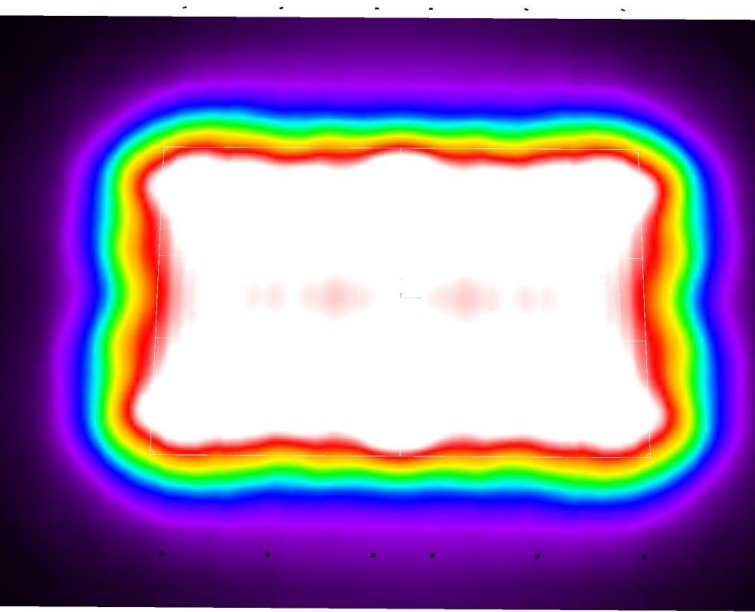

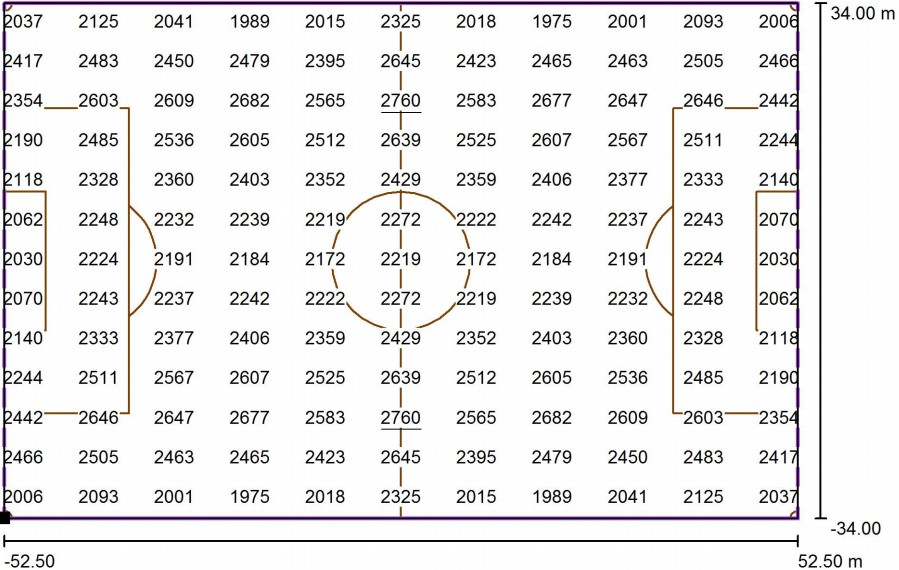

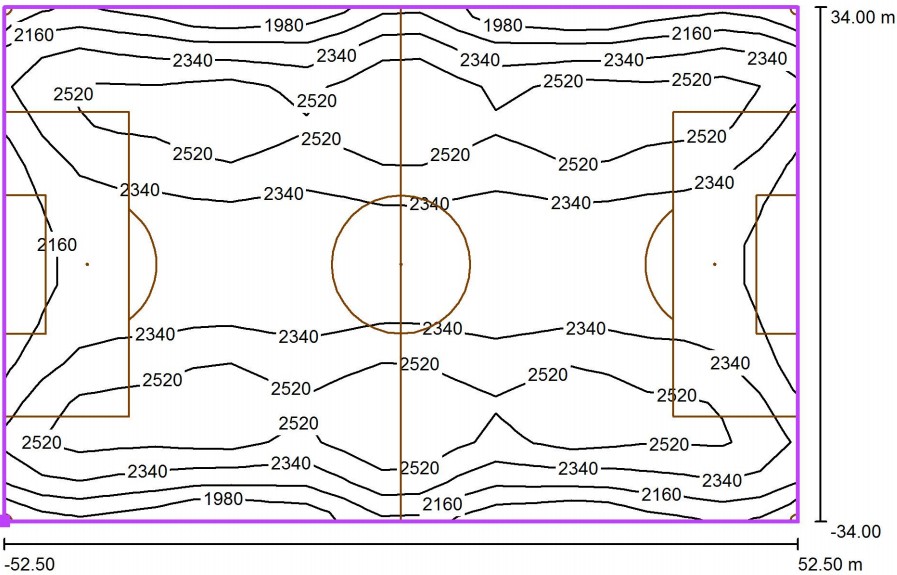

Soccer Field Lighting Simulation
