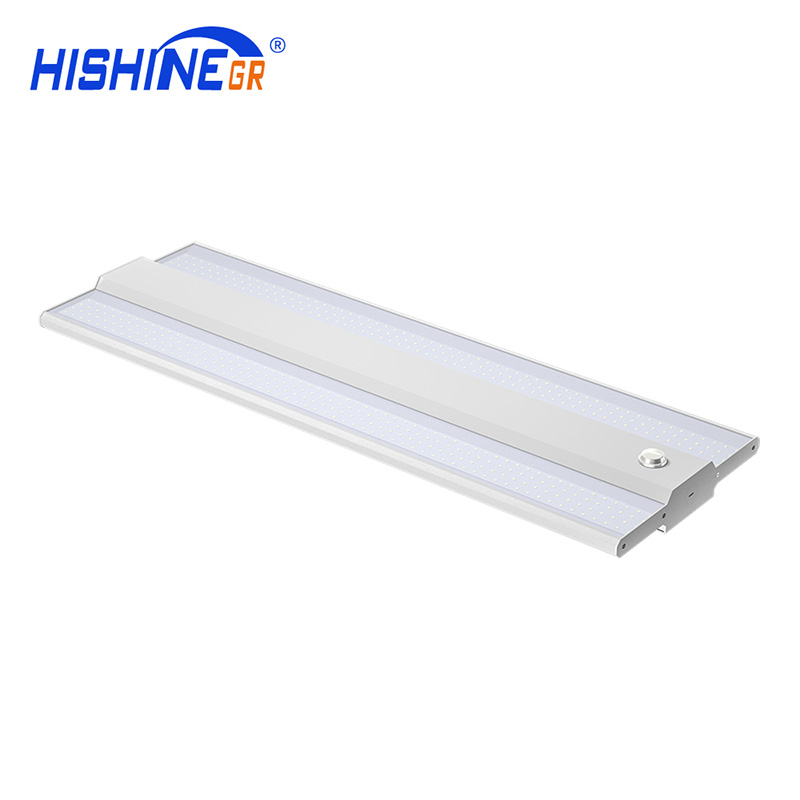

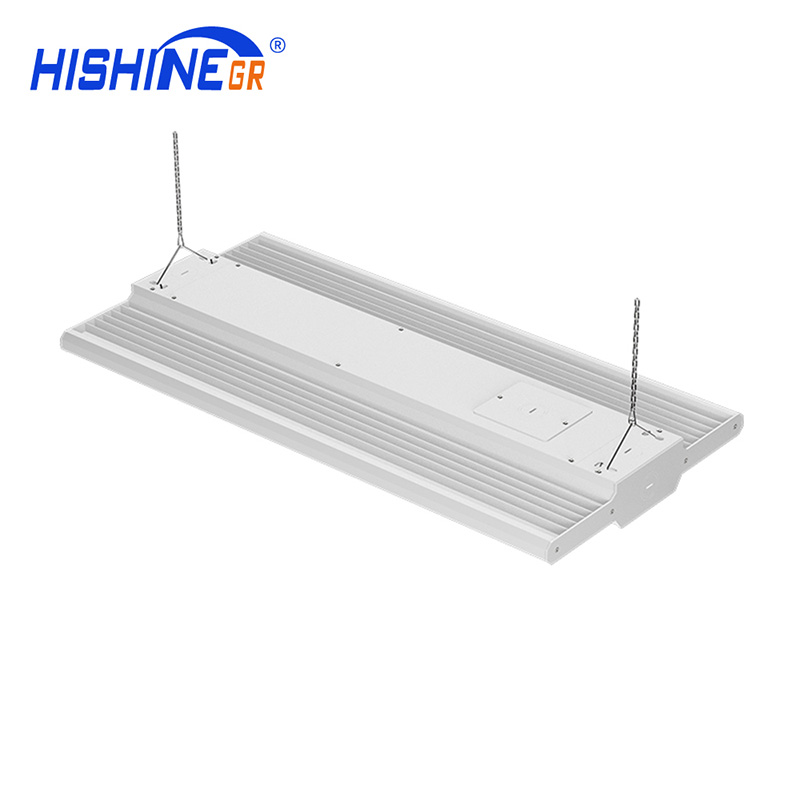

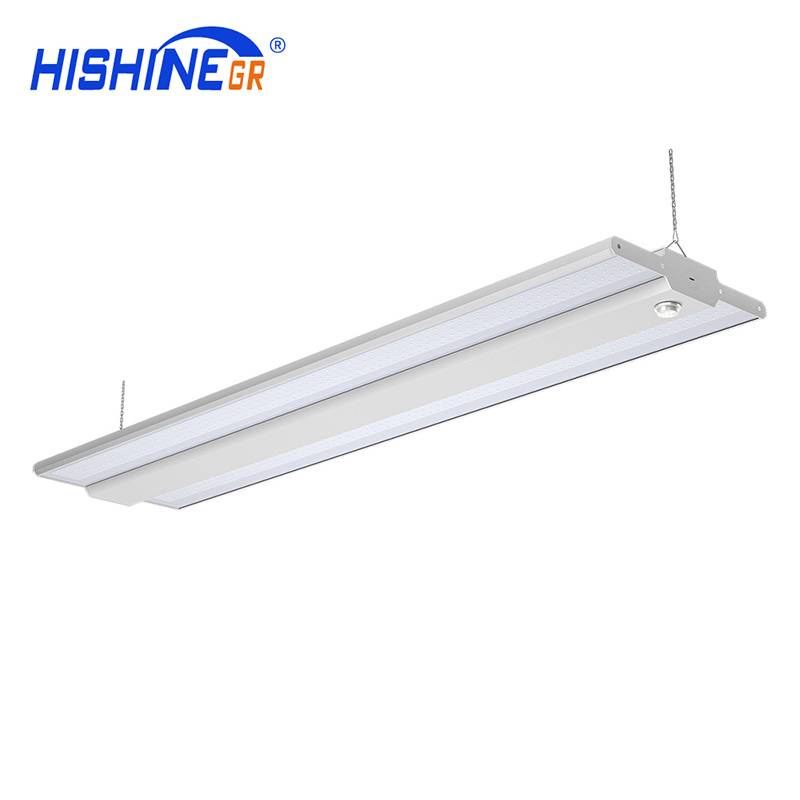

Educational Linear High Bay Light
  • Educational Linear High Bay Light
  • Educational Linear High Bay Light
  • Educational Linear High Bay Light
  • Educational Linear High Bay Light
  • Educational Linear High Bay Light
  • Educational Linear High Bay Light

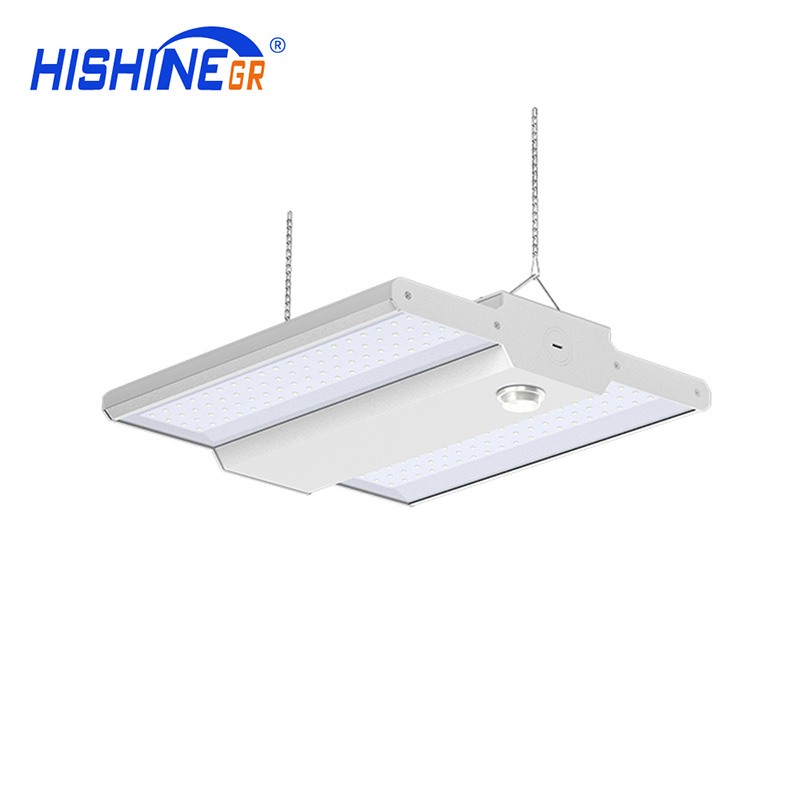

Educational Linear High Bay Light


Product Parameters:

  • Wattage: 75W 150W 240W 300W
  • Luminous Efficacy: 140LM/W
  • Lumen Output: 10500lm-42000lm
  • Warranty: 5 years
send inquiry

Educational Linear High Bay Light

HISHINE's new educational lamp is designed for teaching. Education lights use special power and special lenses. HISHINE has achieved the best educational lamp through many tests of educational lamps. The educational lamp makes the light source not flicker under special power processing. With the addition of special lenses, it can pass the UGR <19 test report and effectively protect. Eye injury.

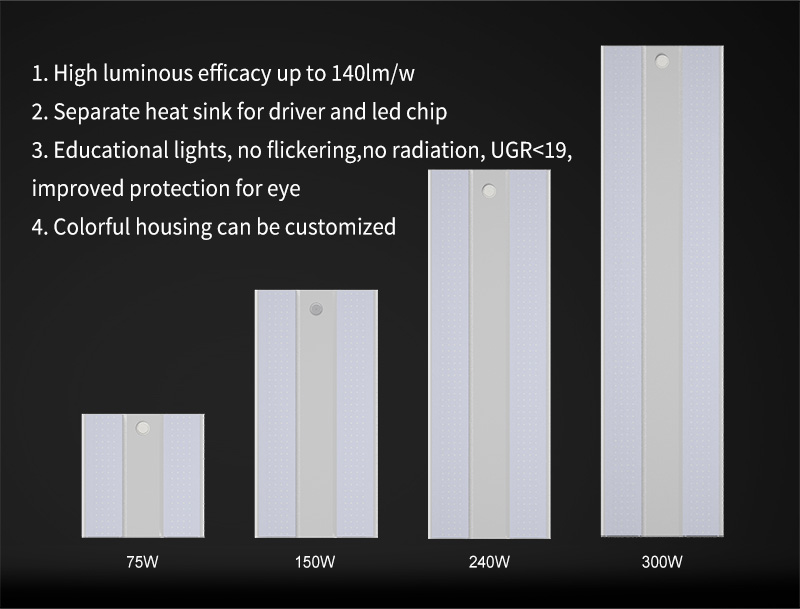

Educational Linear High Bay Light Product decomposition

1. High luminous efficacy up to 140lm/w

2. Separate heat sink for driver and led chip

3. Educational lights, no flickering,no radiation, UGR<19, improved protection for eye

4. Colorful housing can be customized

Educational Linear High Bay Light Product decomposition

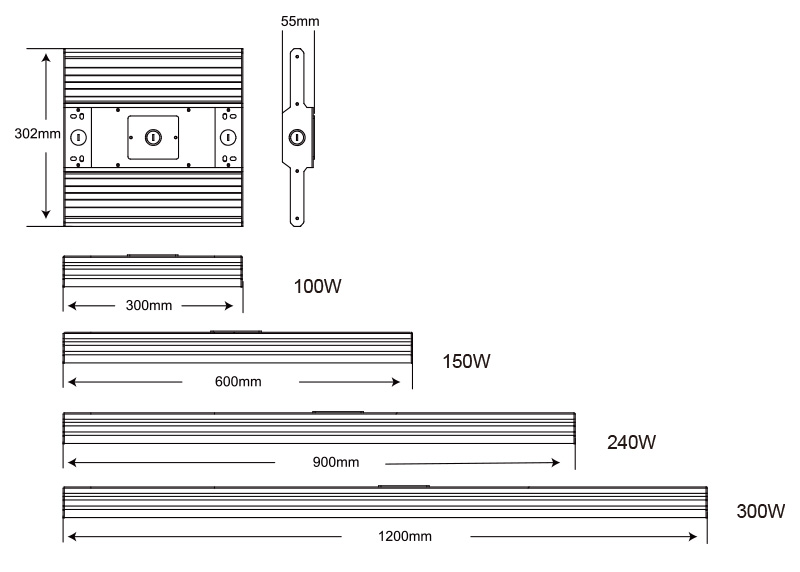

Educational Linear High Bay Light Product specifications

Educational Linear High Bay Light Product specifications

Educational Linear High Bay Light Product Parameters

Part Number

HS-SB75W-K6

HS-SB150W-K6

HS-SB240W-K6

HS-SB300W-K6

Wattage

75W

150W

240W

300W

Lumen Output

10500lm

21000lm

33600lm

42000lm

LED Quantity

150pcs

300pcs

480pcs

600pcs

Size(MM)

L320*W299*H62

L620*W299*H62

L910*W299*H62

L1205*W299*H62

LED Chip

Lumileds /Cree

Luminous Efficacy

140LM/W

CCT

3000K-6500K

CRI

&ge;80

Beam Angle

120&deg;

IP Rating

IP22

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

5 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+Customized lens UGR<19

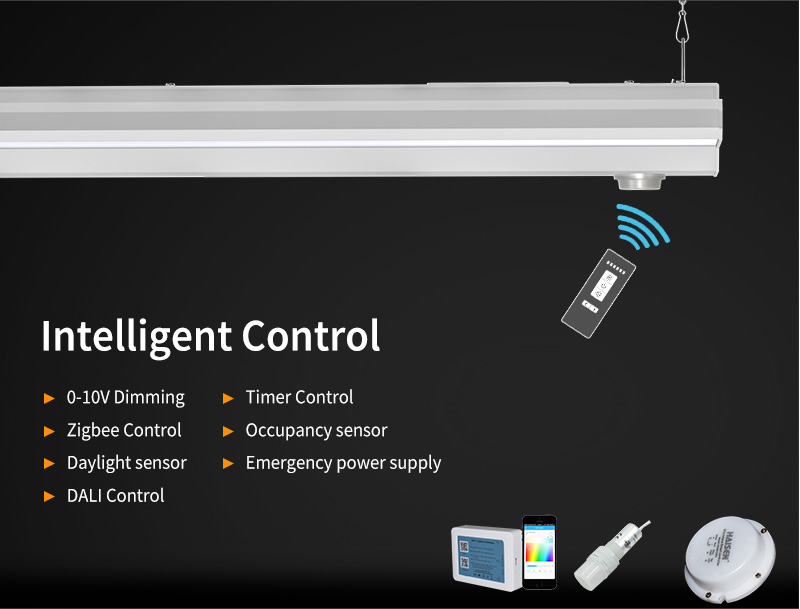

Educational Linear High Bay Light Intelligent Control

Educational Linear High Bay Lighting includes 0-10V Dimming,Timer Control, Zigbee Control , Occupancy sensor,DALI Control,Emergency power supply

Educational Linear High Bay Light Intelligent Control

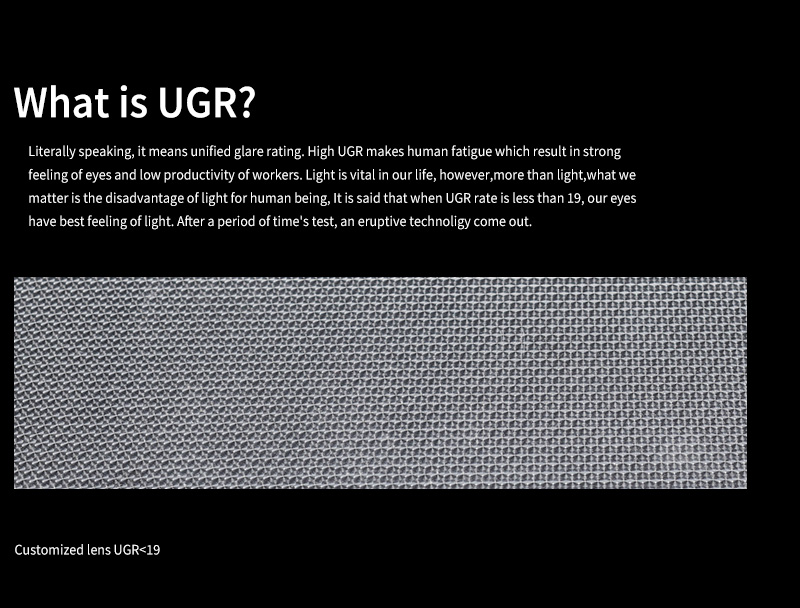

Educational Linear High Bay Light What is UGR?

Literally speaking, it means unified glare rating. High UGR makes human fatigue which result in strong feeling of eyes and low productivity of workers. Light is vital in our life, however,more than light,what we matter is the disadvantage of light for human being, It is said that when UGR rate is less than 19, our eyes have best feeling of light. After a period of time's test, an eruptive technoligy come out.

Educational Linear High Bay Light What is UGR?

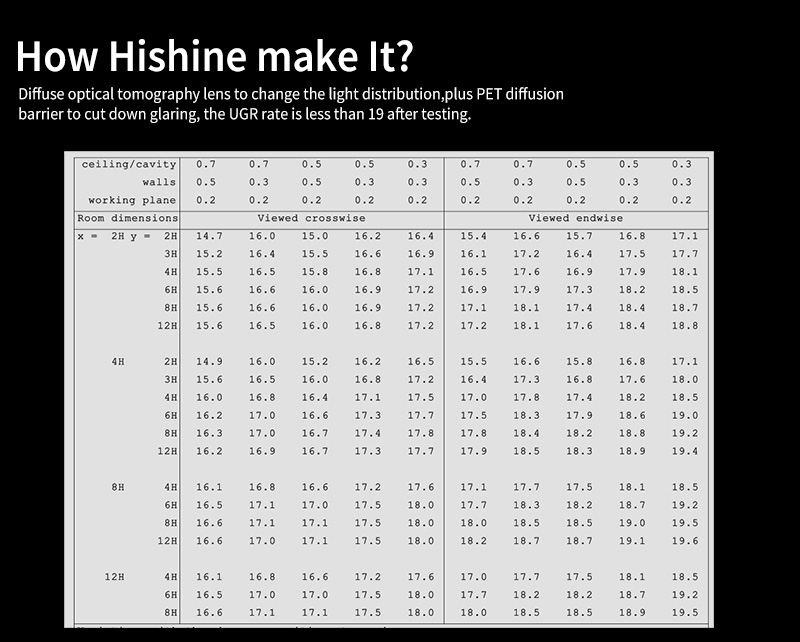

Educational Linear High Bay Light How Hishine make It?

Diffuse optical tomography lens to change the light distribution,plus PET diffusion barrier to cut down glaring, the UGR rate is less than 19 after testing.

Educational Linear High Bay Light How Hishine make It?

Educational Linear High Bay Light Product decomposition

Educational Linear High Bay Light Product decomposition

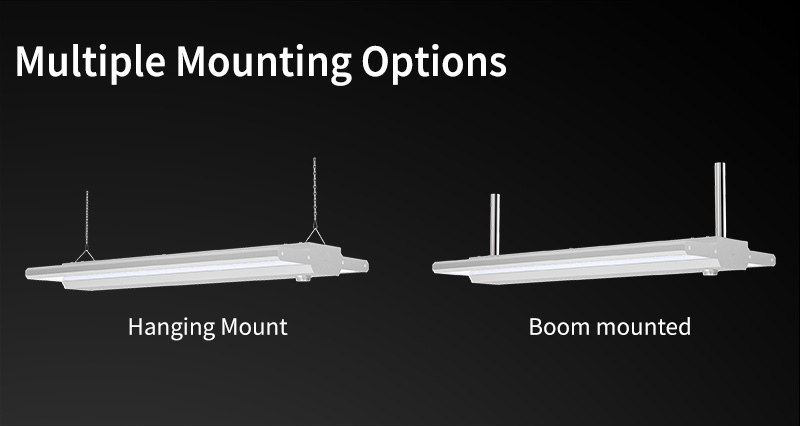

Educational Linear High Bay Light Multiple Mounting Options

Educational Linear High Bay Light Multiple Mounting Options

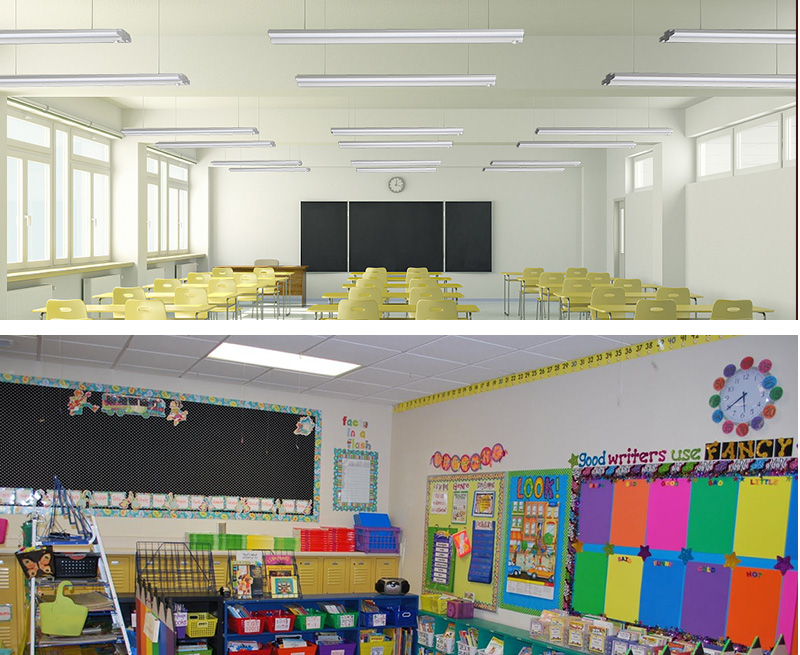

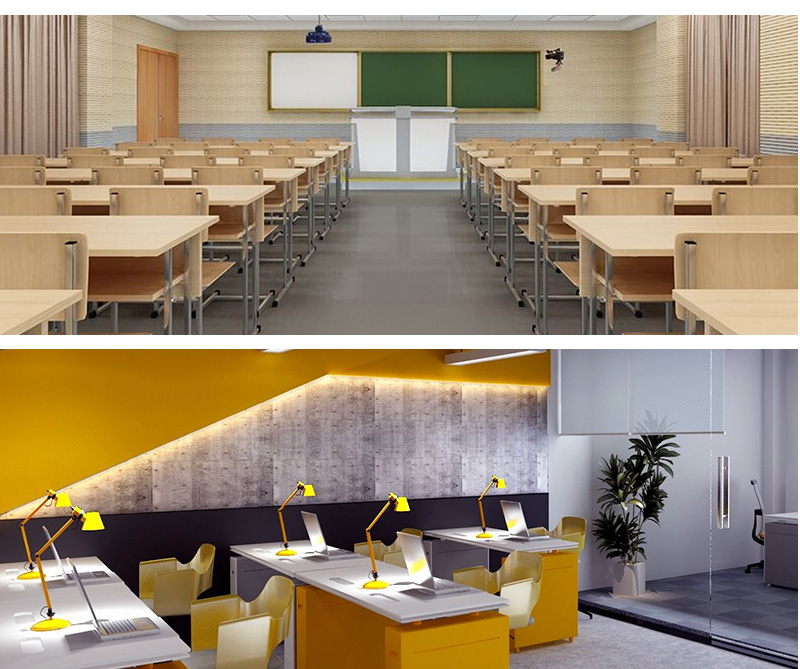

Educational Linear High Bay Light Applications

Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.


Hishine Group Limited is a leading company that specializes in providing IoT network solutions. One of their notable achievements is their membership in the Wi-SUN Alliance, a global organization dedicated to promoting interoperable wireless solutions for smart cities and IoT applications. Hishine Group Limited offers a wide range of products, including street lights, sports lights, and seaport lights, all integrated with advanced IoT technologies. Their street lights, for instance, are equipped with intelligent sensors and remote monitoring capabilities, allowing for efficient energy management and enhanced safety. With their IoT network solutions, Hishine Group Limited enables seamless connectivity and data exchange between various devices, enabling smart city applications and improving overall efficiency. Their dedication to innovation and commitment to providing high-quality products make them a trusted partner in the development of smart cities and IoT applications.

Educational Linear High Bay Light Applications 1

Educational Linear High Bay Light Applications 2
