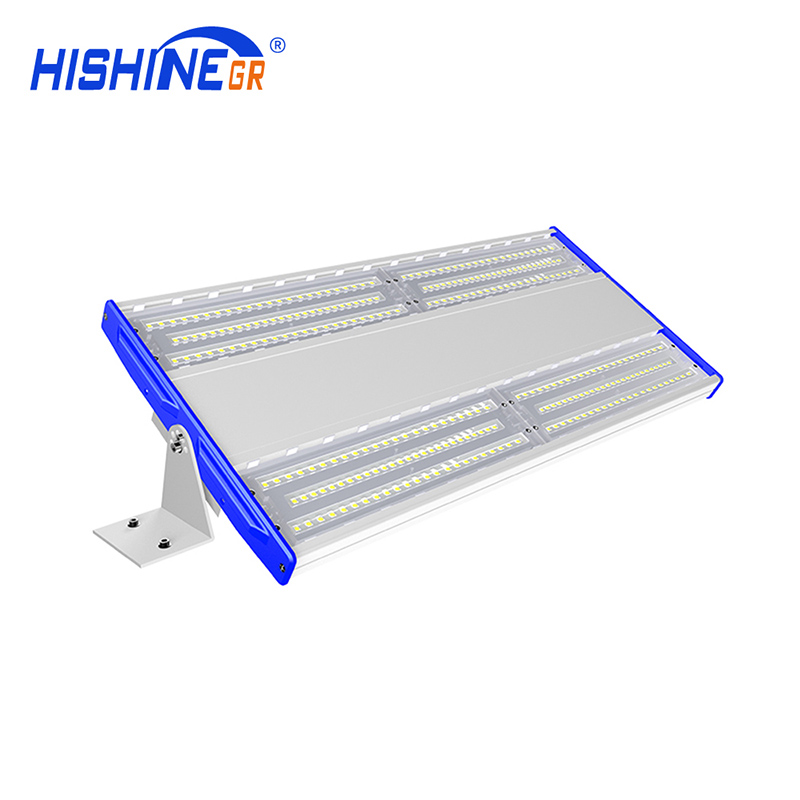

200W-250W K5 LED Linear High Bay Light
  • 200W-250W K5 LED Linear High Bay Light
  • 200W-250W K5 LED Linear High Bay Light
  • 200W-250W K5 LED Linear High Bay Light
  • 200W-250W K5 LED Linear High Bay Light
  • 200W-250W K5 LED Linear High Bay Light
  • 200W-250W K5 LED Linear High Bay Light

200W-250W K5 LED Linear High Bay Light


Product Parameters:

  • Wattage: 200W 250W
  • Luminous Efficacy: 152LM/W
  • Lumen Output: 30400lm 38000lm
  • Warranty: 7 years
  • Certification: UL,DLC,CB,CE,SAA
send inquiry

200W-250W K5 LED Linear High Bay Light

A powerful LED light source with a unique design,High luminous efficacy up to 152lm/w

Extensive Options can replace all types of Standard MH High bays High Thermal Conductivity,Low Luminous Decay, Pure Colours & No Heavy Shade

The unique design of Radiator fuses with the Lamp Box perfectly hence diffuses the heat conduction efficirntly which reduces the temperature of the inside lamp & ensures the LED ling Lifespan No Flickering,No UV Radiation

K5 LED Linear High Bay Light Product Specifications

K5 LED Linear High Bay Light Product Specifications

K5 LED Linear High Bay Light Product Parameters

Part Number

HS-HB200W-K5

HS-HB250W-K5

Wattage

200W

250W

Lumen Output

30400lm

38000lm

LED Quantity

336pcs

Size(MM)

L620*W299*H62

LED Chip

Lumileds/Cree

Luminous Efficacy

152LM/W

CCT

3000K-6500K

CRI

≥80

Beam Angle

60°/90°/120°

IP Rating

IP54

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens



Key Features Of K5 LED Linear High Bay Light

1.50w to 500w, 1ft to 4ft, DLC premium, UL, cUL, SAA,CB certificated,

2.milky / clear lens, 60/90/120degree for choosing,

3.various installation ways,suspended mounting/ surfaced mounting/ pole mounting,

4.occupany sensor/ daylight sensor, Zigbee wifi control, emergency backup are available.

Key Features Of K5 LED Linear High Bay Light

K5 LED Linear High Bay Light Intelligent Control

K5 LED Linear High Bay Light Intelligent Control: 0-10V Dimming,Timer Control, Zigbee Control, Occupancy sensor,Daylight sensor,Emergency power supply,DALI Control

K5 LED Linear High Bay Light Intelligent  Control

K5 LED Linear High Bay Light Lens And Beam Angle

Snap-in Type Lens

View angle 60°/90°/120° available

Milky Lens Light did not glare but warm,always in pression

Transparent Lens Transparent Lens transmittance over 92%

K5 LED Linear High Bay Light Lens And Beam Angle

K5 LED Linear High Bay Light Surface Treatment

Sandblasting oxidation treatment on heat sink makes fixture body insulated with better abrasion performance and corrosion resistance

K5 LED Linear High Bay Light Surface Treatment

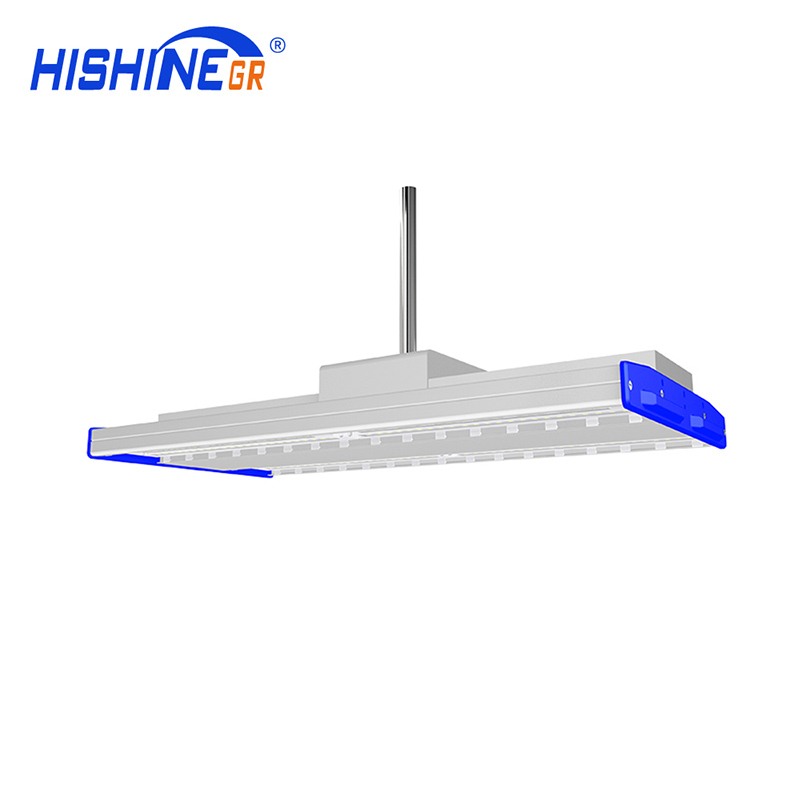

K5 LED Linear High Bay Light Multiple Mounting Options

K5 LED Linear High Bay Light Multiple  Mounting Options

K5 LED Linear High Bay Light Applications

Widely used in Factory, Workshop, Warehouse, Logistics Center Exhibition Hall,Gymna-sium, Shipyards, Mining, Gas Station, Supermarket, etc.


Hishine Group Limited is a leading company that specializes in providing IoT network solutions. One of their notable achievements is their membership in the Wi-SUN Alliance, a global organization dedicated to promoting interoperable wireless solutions for smart cities and IoT applications. Hishine Group Limited offers a wide range of products, including street lights, sports lights, and seaport lights, all integrated with advanced IoT technologies. Their street lights, for instance, are equipped with intelligent sensors and remote monitoring capabilities, allowing for efficient energy management and enhanced safety. With their IoT network solutions, Hishine Group Limited enables seamless connectivity and data exchange between various devices, enabling smart city applications and improving overall efficiency. Their dedication to innovation and commitment to providing high-quality products make them a trusted partner in the development of smart cities and IoT applications.

K5 LED Linear High Bay Light Applications 1

K5 LED Linear High Bay Light Applications 2
