Hi-Smart H3 LED UFO High Bay Light
  • Hi-Smart H3 LED UFO High Bay Light
  • Hi-Smart H3 LED UFO High Bay Light
  • Hi-Smart H3 LED UFO High Bay Light
  • Hi-Smart H3 LED UFO High Bay Light

Hi-Smart H3 LED UFO High Bay Light


Product Parameters:

  • Wattage: 100W 150W 200W 250W
  • Luminous Efficacy: 152LM/W
  • Lumen Output: 15200lm-38000lm
  • Warranty: 7 years
  • Certification: UL,DLC,CB,CE,SAA,IP65
send inquiry

Hi-Smart H3 LED UFO High Bay Light

Hi-Smart H3 LED UFO High Bay Light Intelligent energy saving 75%

Features of H3 LED UFO High Bay Light


1. Ultra slim heat sink design makes the lamp lighter and better in heat dissipation

2.High lumen SMD3030 chip, luminous efficacy 152lm/w

3.Waterproof IP67, high thermal conductivity housing

4. Beam angle 120-degree PC lens with transmittance of 92%

5.Support all kinds of intelligent sensors(Microwave, Daylight, Camera)

Hi-Smart H3 LED UFO High Bay Light Product Parameters



Part Number

HS-HB100W-H3

HS-HB150W-H3

HS-HB200W-H3

HS-HB250W-H3

Wattage

100W

150W

200W

250W



Lumen Output

15200lm

22800lm

30400lm

38000lm



LED Quantity

154pcs

210pcs

308pcs

308pcs



Size(MM)

Φ340*H108

LED Chip

Lumileds/Cree

Luminous Efficacy

152LM/W

CCT

3000K-6500K

CRI

≥80

Beam Angle

120°

IP Rating

IP65

Working Temperature

-30℃ to +55℃

Input Voltage

AC100-277V/347V/480V, 50/60Hz, >0.92

Warranty

7 years

Lifespan

>50,000hrs

Material

Die-casting Aluminum housing+PC lens

Hi-Smart H3 LED UFO High Bay Light Product specifications



Hi-Smart H3 LED UFO High Bay Light Product specifications

Hi-Smart H3 LED UFO High Bay Light Light Distribution Optional

Hi-Smart H3 LED UFO High Bay Light Product decomposition


Hi-Smart H3 LED UFO High Bay Light Product decomposition

Hi-Smart H3 LED UFO High Bay Light IP Rating IP65


Silicon rubber ring sealing process, IP grade reach IP65,completely prevent dust invasion and heavy rain.

Hi-Smart H3 LED UFO High Bay Light IP Rating IP65

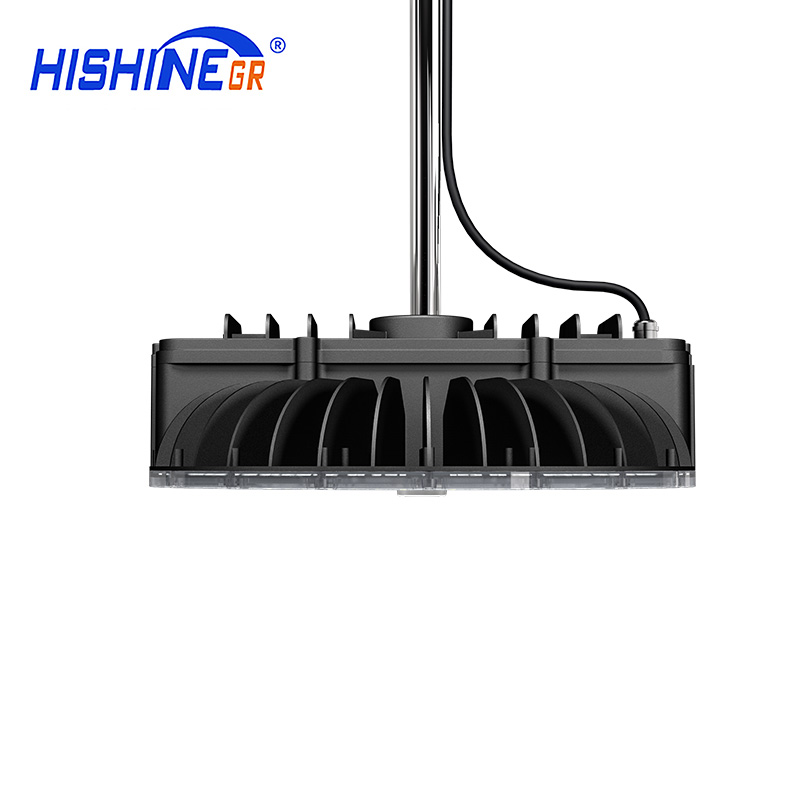

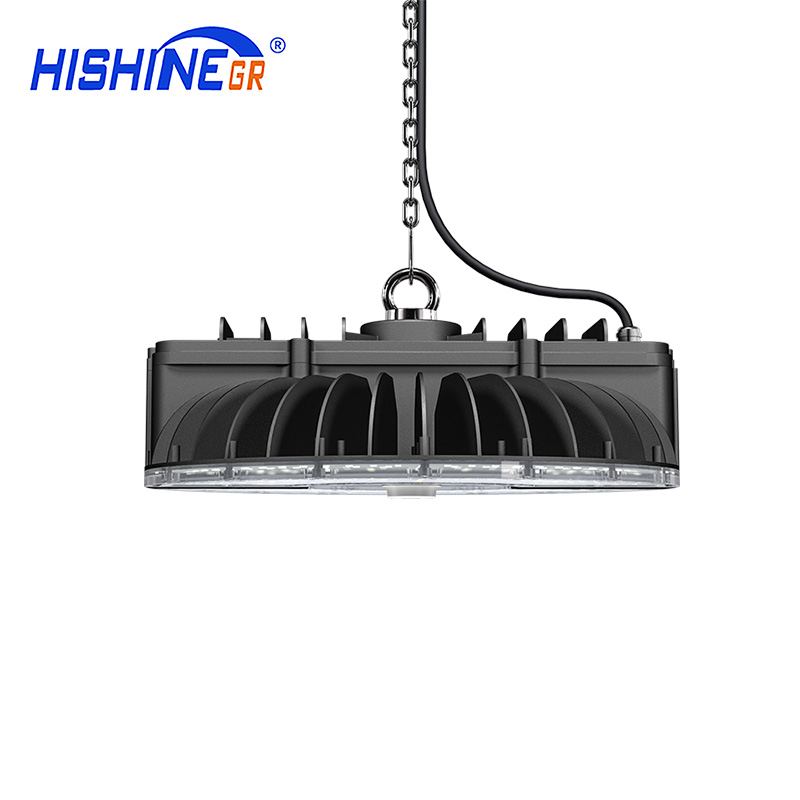

Hi-Smart H3 LED UFO High Bay Light Multiple Mounting Options

Hi-Smart H3 LED UFO High Bay Light Multiple Mounting Options

Hi-Smart H3 LED UFO High Bay Light Applications


Widely use in workshop,factory, warehouse,stadium,exhibition hall,supermarket,court,etc.

Hishine Group Limited is a leading company that specializes in providing IoT network solutions. One of their notable achievements is their membership in the Wi-SUN Alliance, a global organization dedicated to promoting interoperable wireless solutions for smart cities and IoT applications. Hishine Group Limited offers a wide range of products, including street lights, sports lights, and seaport lights, all integrated with advanced IoT technologies. Their street lights, for instance, are equipped with intelligent sensors and remote monitoring capabilities, allowing for efficient energy management and enhanced safety. With their IoT network solutions, Hishine Group Limited enables seamless connectivity and data exchange between various devices, enabling smart city applications and improving overall efficiency. Their dedication to innovation and commitment to providing high-quality products make them a trusted partner in the development of smart cities and IoT applications.

Hi-Smart H3 LED UFO High Bay Light Applications 1

Hi-Smart H3 LED UFO High Bay Light Applications 2
